Product Details:
|
| Rated Load: | 10KN | Weight: | 5KG |
|---|---|---|---|
| Item: | Straight Line Bridge Roller Cable Roller | Application: | Cable Laying |
| Suface Treatment: | Galvanized | Wheel Diameter: | 140mm |
| Highlight: | cable laying equipment,cable tower machine |
||

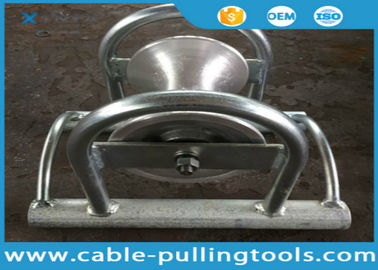

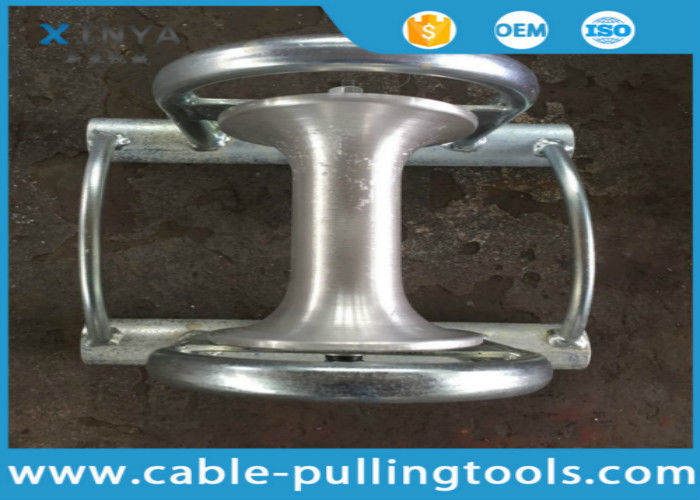

Heavy Duty 160mm Straight Line Bridge Roller Cable Roller
Application
Heavy duty bridge style cable roller for use in most cable laying applications
• Heavy Duty Tubular Frame Straight Line Bridge Roller
• Fitted with hoops to fit over previously laid cables
• 140mm Diameter Large Waisted Steel Roller*
• Sealed roller bearing fitted
• Bright Zinc Plated Finish
• 160mm diameter Cable Capacity
• Size 30cms Long x 22.5cms Wide x 25cms High
• Weight 5 Kg
Features
Underground Cable Tools Heavy Duty 160mm Straight Line Bridge Roller Cable Roller
Material:MC nylon or aluminium alloy
Light weight
High quality
Technical Data
| Product NO. | Type NO. | Rated Load( KN) | Range (mm) | specifications(mm) | weight(kg) |
| 80439 | DHP-60 | 12 | ≤Φ150 | 140*160 | 4.2 |
| 80440 | DHP-60N | 12 | ≤Φ150 | 140*160 | 4 |
| 80441 | DHPG-80 | 15 | ≤Φ150 | 160*165 | 5.1 |
| 80442 | DHPG-80N | 15 | ≤Φ150 | 160*165 | 4.8 |
