Product Details:
|
| Press-jointrange(mm2): | 150-1000mm² | Max Pressure (T): | 50 |
|---|---|---|---|
| Application: | Power Construction | Max Travel (mm): | 25 |
| Type: | Hydraulic Crimping Head | Mould: | 150,185,240,300,400,500,630,1000 Sqmm |
| Highlight: | hydraulic wire cutter,hydraulic crimp tool |
||

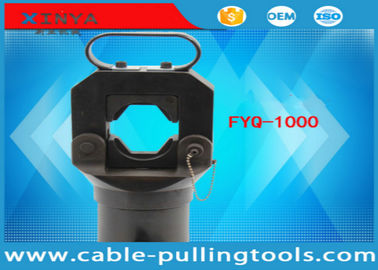

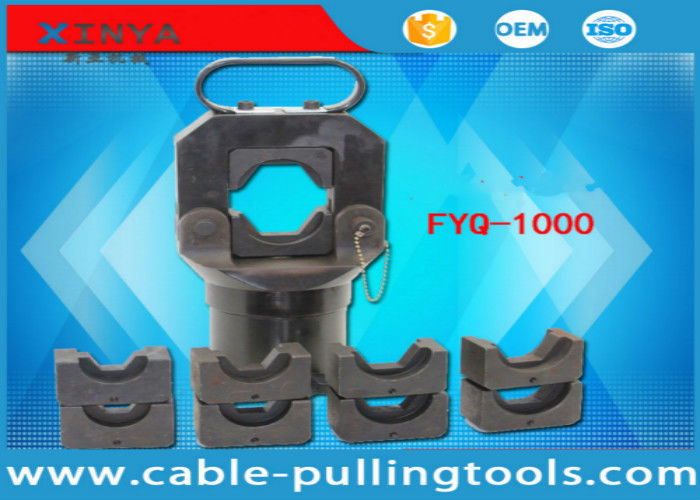

FYQ-1000 Split-unit Hydraulic Crimping Tool Cable Lug Hydraulic Crimping Plier
Function description:
It is specially made of high carbon steel raw material by means of CNC processing,with good quality and high tension
stress.Compression ratio of mould can be calculated according to the pressed objects;Single circuit can be furnished with
single circuit pump and double circuits can be furnished with double cicuits pump;In time of outdoor construction,engine
electric generator or engine pump can be furnished to make construction conducted in a quickest and safe way for only
8-12 seconds each time.Hardware fittings are manufactured in accordance with state standard and CNC linear cutting
dimension standard with precise accuracy degree.
1.Suitable for use in indoor&outdoor power transmission and distributionprojects.
2.Ddsigned for high voltge cablecouduits(10KV-500KV),wire holders.
3.Welcome to order special special specification tools.
|
Model
|
FYQ-1000
|
|
Crimping range
|
150-1000mm²
|
|
Crimping force
|
50T
|
|
Stroke
|
25mm
|
|
Accessories
|
150,185,240,300,400,500,630,1000mm
|
|
Weight
|
15kg
|
|
Package
|
Wooden box
|
|
Crimping type
|
Hexagon crimping
|
|
Model
|
Max.
pressure
(T)
|
Stroke
(mm)
|
Crimping
range
(mm²)
|
Size of standar dies
(mm)
|
Crimping type
|
G.W.
(kg)
|
|
FYQ-300
|
16
|
20
|
16-300
|
16,25,35,50,70,95,120,150,185,240,300
|
Hexagonal
|
3
|
|
FYQ-400
|
22
|
22
|
50-400
|
50,70,95,120,150,185,240,300,400
|
Hexagonal
|
5.5
|
|
FYQ-500
|
25
|
25
|
120-500
|
120,150,185,240,300,400,500
|
Hexagonal
|
7
|
|
FYQ-630
|
30
|
25
|
150-630
|
150,185,240,300,400,500,630
|
Hexagonal
|
14.5
|
|
FYQ-1000
|
50
|
25
|
150-1000
|
150,185,240,300,400,500,630,1000
|
Hexagonal
|
23
|
