Product Details:
|
| Function: | Tight Wire | Material: | Steel |
|---|---|---|---|
| Weight: | 2.2kg | Rated Load (KN): | 20 |
| Type: | Wire Grip | Application: | Tightening 150-300mm2 |
| Name: | Come Along Clamp | Product Name: | 20KN Come Along Clamps For Steel Stay Wire & Copper Conductor |
| Highlight: | construction hand tools,building construction tools |
||

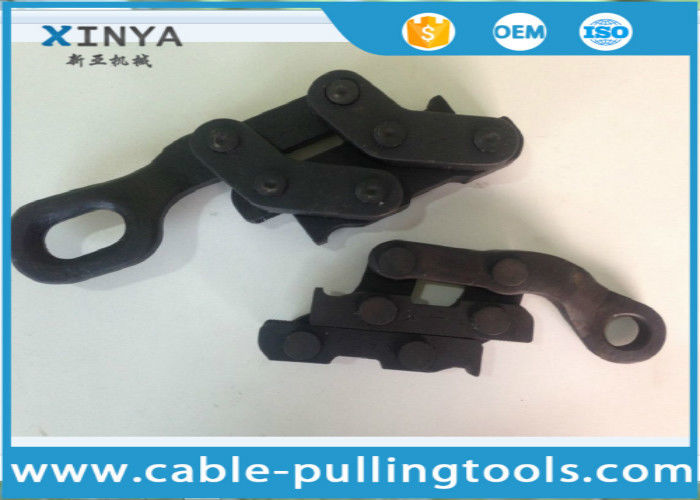

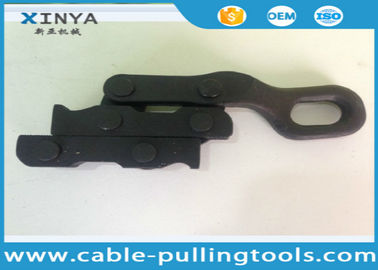

20KN Come Along Clamps for Steel Stay Wire & Copper Conductor
| Item number | Model | Rated load (kN) | Applicable wire(mm2) | Weight (kg) |
| 80128 | X-1 | 12 | 16-50 | 1 |
| 80129 | X-2 | 16 | 50-150 | 1.3 |
| 80130 | X-3 | 20 | 150-300 | 2. |
Usage: applied to grip earth wire
Notes:please writing clearly the detail specification of anti-twist wire rope .
Application:The tension and adjust the radian is suitable for wire and cable railway contact,using parallel jaw design,with anti slip jaw.
Different Types of come along clamps
Eccenter wire grip for groud wire
Application:It is used for wire pulling adjusting of wirepulling pole tower and ground wire tightening,easy and convenient for using.
| Model No. | Proper conductor(GJ) | Rated Load(KN) | Max Openging (mm) | Weight(kg) |
| SKDP-1 | 25-50 | 10 | 11 | 2.3 |
| SKDP-2 | 50-70 | 20 | 13 | 2.7 |
| SKDP-3 | 70-120 | 30 | 15 | 3.7 |
Ground peach wire grip for grounding wire
Application:It is used for wire pulling adjusting of wirepulling pole tower and ground wire tightening,easy and convenient for using.
| Model No. | Proper conductor(GJ) | Rated Load(KN) | Max Openging (mm) | Weight(kg) |
| SKDS-1 | 25-50 | 10 | 11 | 1.9 |
| SKDS-2 | 50-70 | 20 | 13 | 2.4 |
| SKDS-3 | 70-120 | 30 | 15 | 3.5 |
Single peach wire grip for ground wire
Application:It is used for wire pulling adjusting of wirepulling pole tower and ground wire tightening,easy and convenient for using.
| Model No. | Proper conductor(GJ) | Rated Load(KN) | Max Openging (mm) | Weight(kg) |
| SKDD-1 | 25-50 | 10 | 11 | 1.3 |
| SDKK-2 | 70-120 | 20 | 16 | 1.7 |
Parallelism modle wire grip for ground wire
Application:It is used for wire pulling adjusting of wirepulling pole tower and ground wire tightening,easy and convenient for using.
| Model No. | Proper conductor(GJ) | Rated Load(KN) | Max Openging (mm) | Weight(kg) |
| SP-1 | 25-50 | 10 | 11 | 1.2 |
| SP-2 | 50-70 | 20 | 13 | 1.9 |
| SP-3 | 70-120 | 30 | 15 | 2.6 |
Multifunction modle wire grip for wire
Application:It is used for wire pulling adjusting of wirepulling pole tower and ground wire tightening,easy and convenient for using.
| Model No. | Proper conductor(GJ) | Rated Load(KN) | Max Openging (mm) | Weight(kg) |
| SD-1000C | 2.6-15 | 10 | 13 | 0.8 |
| SD-2000CL | 4-22 | 20 | 22 | 1.3 |
| S-3000CL | 16-32 | 30 | 32 | 2.5 |
