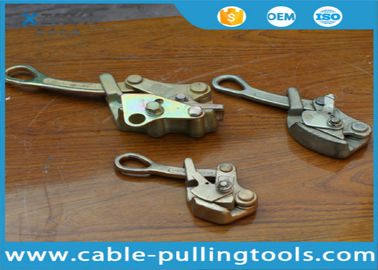

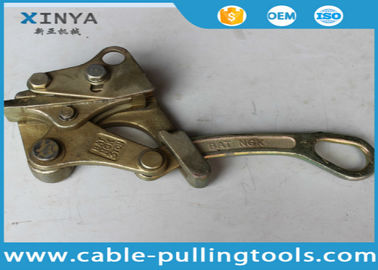

Product Details:
|
| Function: | Tight Wire | Weight: | 1.3KG |
|---|---|---|---|
| Rated Load (KN): | 20 | Type: | Wire Rope Grip |
| Application: | Power Construction | Name: | Wire Grip Clamp |
| Product Name: | 2T Wire Rope Self Gripping Clamp, NGK Wire Grip, Wire Rope Grip | Usage: | Tightening Conductor |
| Highlight: | basic hand tools,building construction tools |
||
Specification
|
Item No.
|
Model No.
|
Rated Load
(KN)
|
Applicable Conductor Diameter
(MM)
|
Unit Weight
(KG)
|
|
0126
|
SD-1000
|
10
|
2.6~15
|
0.75
|
|
0127
|
SD-2000CL
|
20
|
4~22
|
1.3
|
|
0103
|
SD-3000CL
|
30
|
16~32
|
2.5
|
Features:
Product is forged of alloy steel with heat treatment.
The rack has strong anti-tension with high occlusion strength. It is not easy to slide and deformation.
Note:
1. SD-1000 Apply to steel rope and steel stranded wire;
2. SD-2000CL Apply to steel rope and conductor wire;
3. SD-3000CL Apply to copper wire, aluminum wire, ACSR or aerial insulation line.
