Product Details:
|
| Crimping Range: | 10-300mm² | Crimping Force: | 60KN |
|---|---|---|---|
| Crimping Type: | Hexagon Crimping | Stroke: | 17mm |
| Crimp Charge: | 170times(Cu 150mm²) | Crimping Cycle: | 3-6s(depend On The Size Of Cable) |
| Name: | Wholesale Cordless Hydraulic Battery Powered Resource Auto Cable Ferrules Crimping Tools HL-300 | Charge Time: | 1 Hour |
| Battery: | 18V,3.0Ah | Die Sets: | 10,16,25,35,50,70,95,120,150,185,240,300mm² |
| Highlight: | scaffold ratchet wrench,double ended ring spanner |
||

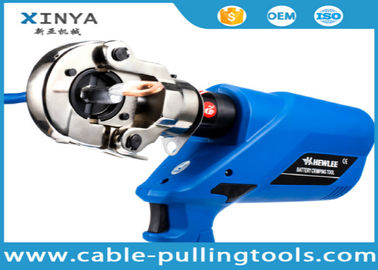

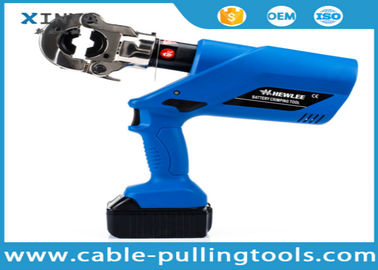

Wholesale Cordless hydraulic battery powered resource auto cable ferrules crimping tools HL-300
FUNCTION
1.18 V charging type hydraulic pressure meet clamp
2.Suitable for distribution homework crimping terminals
3.The industry of lightweight design charging type tools
4.And infinitely cariable speed mortors
5.Can a single hand poeration
6.Super lightweight high durability
7.TO set pressure automatic relief
8.Head can rotate applicable to different places of work
9.small volume,light weight,used for crimping copper aluminum wire and cable connection terminals
10.Pressure can rotate 180 degrees, the joint operation more convenient, comfortable
11.Mechanical relief can ensure that the quality of the crimping
Technical Data
| Crimping range | 10-300mm² |
| Crimping force | 60KN |
| Crimping type | Hexagon crimping |
| Stroke | 17mm |
| Crimp charge | 170times(Cu 150mm²) |
| Crimping cycle | 3-6s(depend on the size of cable) |
| Voltage | 18V |
| Capacity | 3.0Ah |
| Charging time | 1 hours |
| Package | Aluminum alloy case |
| Charging die |
10,16,25,35,50,70,95,120,150,185,240,300mm² |
| Accessories: | |
| Battery | 2pcs |
| Charger |
1pcs |
