Product Details:
|
| Rated Load: | 25KN | Wheel: | Nylon |
|---|---|---|---|
| Weight: | 8KG | Item: | Tandem Sheave Stringing Block |
| Application: | Power Construction | Usage: | Stringing |
| Breaking Load: | 50KN | Product Name: | Model SHR-2.5 25KN Tandem Sheave Stringing Block With Nylon Wheel |
| Highlight: | block and tackle hoist,wire rope pulley block |
||

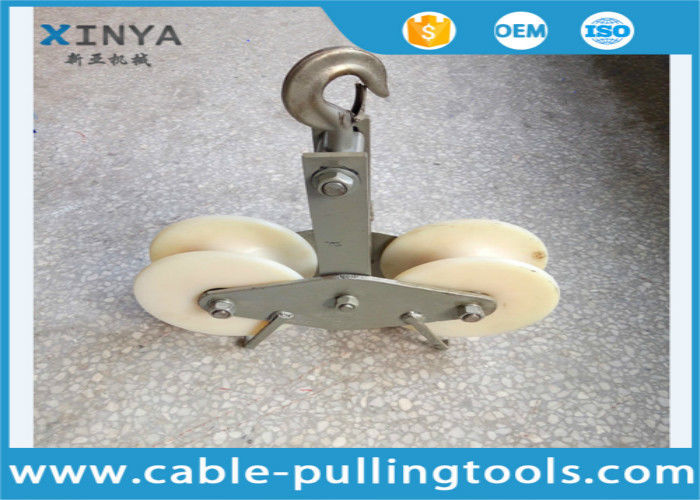

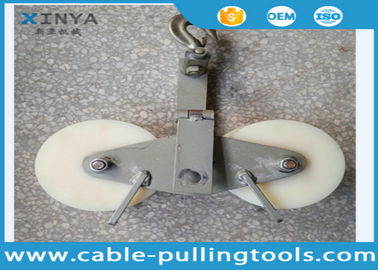

Model SHR-2.5 25KN Tandem Sheave Stringing Block With Nylon Wheel
Application
Not only used to be as hang model pulley but also as skyward model stringing pulley.
Quick Detail
Suit for middle and small section wire expand.
About to hang pay-off pulley, also can be face to pay-off pulley.
1) sheave:Nylon/ Al;
2) Working load:25KN
3) Breaking Load:50KN
4) Weight:8/9.8KG
5) Suitable Conductor:ACSR300-500mm2
Technical Data
| Item Number | Rated Load(KN) | Breaking Load(KN) | Weight(kg) | Remark |
| 10211 | 25 | 50 | 9.8 | Aluminum sheave |
| 10212 | 25 | 50 | 8 | Nylon sheave |
FAQ
1. Can I order one set as sample?
Yes. Usually send one sample by express company, like DHL, UPS,TNT...
2. How to transport the cable pulley?
By sea, by air, International express, or rail transport.
1-5sets by air or express
Above 5sets by shipping or as your request.
3. What is the payment term?
We can receive T/T,L/C,, Paypal.
4. What's the delivery time?
Normally delivery time is about 15 days. If order quantity is small and we have these in stock,
we can do prompt delivery, delivery time is within 7 days
