Product Details:
|
| Max Payload: | 5T | Application: | Cable Reel Transportation |
|---|---|---|---|
| Usage: | Cable Stringing | Weight(kg): | 1500 |
| Max Coil Diameter(mm): | 2800 | Type: | Cable Reel Trailer |
| Name: | 5 Ton Cable Drum Carriage Cable Reel Trailer Wire Reel Trailer | Item: | Cable Drum Carriage |
| Highlight: | cable laying equipment,cable tower machine |
||

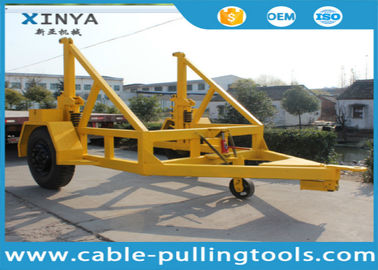

5 Ton Cable Drum Carriage Cable Reel Trailer Wire Reel Trailer
1.Application
1.Uses in the large-scale reel laying
2.loading and unloading.
3.the transportation.
2.Detailed Description
This strong cable drum transport and laying trailer uses the power shifting gear technology,
uses nimbly convenient. Uses in loading and unloading, the transportation, the large-scale reel laying.
(Of course you can according to the need, have custom-made the size).
3.Advantage
1. Able to carry high loads
2. Take First-Class Quality as Target and First-class Service.
3. With a high load-bearing capacity
4. As Responsibility, To Succeed By Scientific Management.
5. Stable performance and durable
6. Customer in Heart, Quality in Hand, Technology in the Lead
Technical Data
| Model | Max coil diameter | Wide | Length | Wide | High | ||
| (T) | (kg) | mm | mm | mm | mm | mm | |
| LZ-3T | 3T | 900 | 2300 | 1250 | 3800 | 2300 | 2200 |
| LZ-5T | 5T | 1500 | 2800 | 1450 | 4000 | 2600 | 2500 |
| LZ-8T | 8T | 2300 | 3300 | 1750 | 4300 | 3200 | 2700 |
| LZ-10T | 10T | 2800 | 3500 | 1850 | 4300 | 3400 | 2800 |
Drawing
