Product Details:
|
| Material: | Nylon Wheel | Type: | Pulley Block |
|---|---|---|---|
| Weight(kg): | 25-245 | Outside Diameter(mm): | 822 |
| Groove Diameter(mm): | 710 | Sheave Width(mm): | 110 |

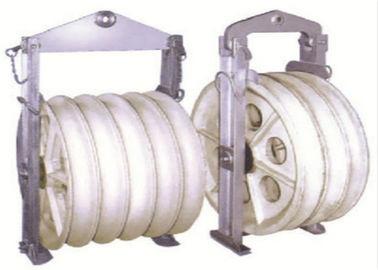

| Application: | Stringing | Name: | 822mm Large Diameter Stringing Block , Aerial Roller With Nylon Wheel |
| Highlight: | block and tackle hoist,cable hoist puller |
||
Application & Features

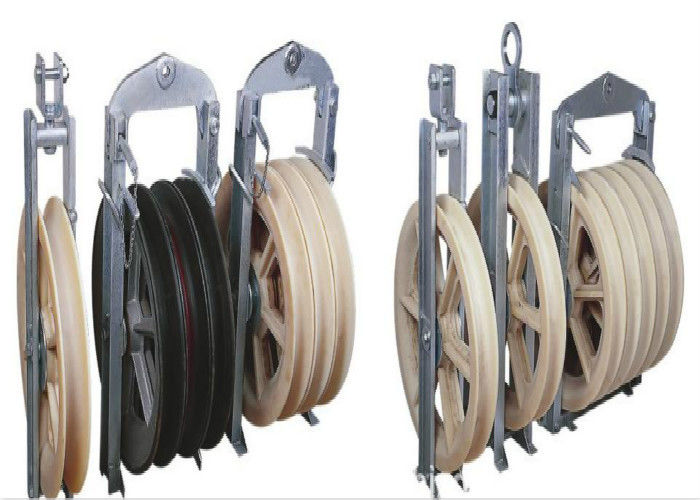

1. It is used to release the wire in the overhead transmission line.It can be used for single conductor,double split wire,four split wire,six split and so on. If the pulley has multiple wheel, the intermediate wheel can use cast steel wheel ,it also can use MC Nylon Wheel.
Large Diameter Stringing Pulley Block 830mm is used to release the wire in the overhead transmission line.
2. And it can be used for single conductor, double split wire, four split wire, six split wire and so on.
3. Used for buiding on stilts to stretch to put conducting line in the power transmission wire ways is more available than an single split conducting line,double split conducting line,four split conducting line,six split conducting line etc.
Specifications
Stringing pulley blocks;pulleys
1) Outside Dia822mm;
2) Sheave: MC Nylon;
3) Frame: Galvanized steel;
Stringing pulley blocks;pulleys
1) Outside Dia:822mm;
2) Sheave:MC Nylon;
3) Frame:Galvanized steel;
4) Sheave number:1/3/5/7
Features
1) It could use for releasing large diameter conductors,like ACSR 350--500KV voltage line in transmission line.
2) very smoothly
Technical Data
| Product No. | Model Type | Rated Load(KN) | Applicable Conductor ACSR(mm2) | Weight(kg) | Sheave No. | Outside Dia*Groove Dia*Sheave Width(mm) |
| 80324 | SHDN-822*110 | 30 | ≤ LGJ630 | 25 | 1 | Φ822*Φ710*110 |
| 80325 | SHSQN-822*110 | 60 | 118 | 3 | ||
| 80326 | SHWQN-822*110 | 120 | 180 | 5 | ||
| 80327 | SHQQN-822*110 | 150 | 245 | 7 |
Changshu Xinya Machinery Manufacturing Co., Ltd. is founded in the eighties of last century, specializing in the production of various electrical equipment, forklift mast and so on. And in 2010,we passed through the ISO9001: 2000 and BV certification.
With support of customers, our products have sold all over the word. According to the needs of the majority of users, we will increase the investment in science and technology,constantly develop new products, strengthen and improve product performance to meet the requirements of our customers.
Our main products are 1 ton, 2 tons, 3 tons, 5 tons, 8 tons JJM series cable pulling winch, hydraulic tensioner,hydraulic puller,cable laying euiqpments,high pressure hydraulic pump with hydraulic crimping tools,come along clamp,stringing pulley, cable roller and cable drum trailer, steel bar, aluminum alloy gin pole , And other power construction equipment and a variety of large tonnage forklift mast and a variety of special requirements of non-standard gantry.
Manufacturing process is complete, strong technical force, processing capacity is complete, finished products are strictly standardized technical quality testing, a sound quality control and after-sales service system, formed a certain scale of power equipment production capacity. Our existing variety of equipment are more than 80 sets, processing capacity, more sophisticated equipment (processing centers and CNC equipment 15 sets) to ensure product quality.
