Product Details:
|
| Usage: | Tightenning | Application: | Adjust Sag |
|---|---|---|---|
| Material: | Tight Wire | Certification: | ISO |
| Name: | 8KN Light Weight Aluminum Alloy Wire Pulling Grip Clamp For 25-70mm2 ACSR | Selling Point: | Aluminum Wire Grip Clamp |
| Rated Load: | 8KN | Max Open: | 13.5mm |
| Highlight: | construction hand tools,basic hand tools |
||
Use and Characteristic

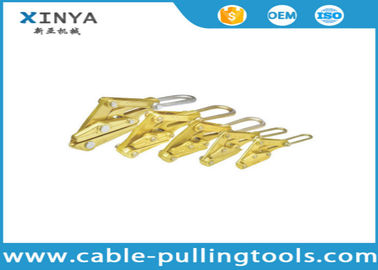

Aluminum alloy Wire Grip Puller is suitable to tighten the Insulated conductors or adjust of sag.
With high strength aluminum titanium alloy forging, the weight is light.

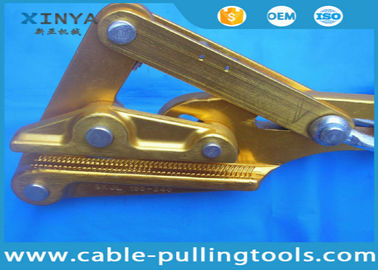

The jaw part adopts a special texture processing so that
it can firmly clamp the cable and does not hurt the inner core whether winter or summer.
Features
1. Forged with high strength aluminum alloy .
2. Light in weight;
3. No damage on conductor.
Technical Data
| Model Type | Rated Load(KN) | Adapt wire(mm2) | Open(mm) | Weight(kg) |
| GK-1 | 8 | 25-70 | 13.5 | 1.4 |
| GK-2 | 16 | 95-120 | 17.5 | 2.1 |
| GK-3 | 30 | 150-240 | 24 | 3 |
| GK-4 | 42 | 300-400 | 32 | 4 |
| GK-5 | 50 | 500-630 | 37 | 7 |
| GK-6 | 70 | 720-830 | 40 | 9.5 |
