Product Details:
|
| Crimping Range: | 10-300mm² | Crimping Force: | 60KN |
|---|---|---|---|
| Crimping Type: | Hexagon Crimping | Stroke: | 17mm |
| Crimp Charge: | 170times(Cu 150mm²) | Crimping Cycle: | 3-6s(depend On The Size Of Cable) |
| Highlight: | construction power tools,scaffold ratchet wrench |
||

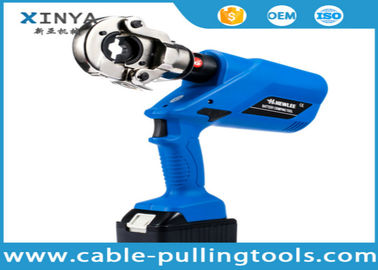

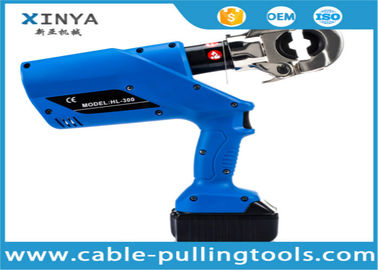

HL -300 Portable Battery Electrical Crimping Other Tools Hexagon Crimping Type
Character
360° flip-top latch rotary crimping head,working at any site
Pistol type tool body design for better balance and easy handling
Double piston pump and powerful motor ensure quick crimp
Automatically fully retract ram and stop motor when complete crimp
Manually retract ram area & lower battery charges or lacking pressure,and acoustic signal sounds and LED flash
Li-ion battery with high capacity and fast charging
A temperature sensor makes the tool stop working automatically when the temperature over 60°C under continuous long time working
Feature:
•Micro computer control system-automatically detect the pressure when it is crimping,with double safety protect.
•Pressure released automatically Function-the tool stop forcing the pressing and release 90% pressure when the pressure reached maximum.
•The tool equipped with double piston pump which characterized by a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping,
•The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.
•If a deviation from the set operation pressure or low battery charges is identified,an acoustic aignal sounds and a red display flashes.
•One key control-press the trigger to start working,half loosing the trigger means stop forcing pressure,loosing fully means piston return to the original position.
•Li-ion batteries do neither have a memory effect nor self discharge.Even after long periods of non operation the tool is always ready to operate.In addition we see a power weight ratio with 50% more
capacity and shorter charging cycles compare to NiMH batteries.
•A temperature sensor makes the tools stop working automatically when the temperature over 60℃ under long time working,the fault signal sounds,it means the tool can't continue work until the temperature reduced to the normail.
Technical Data
| Crimping range | 10-300mm² |
| Crimping force | 60KN |
| Crimping type | Hexagon crimping |
| Stroke | 17mm |
| Crimp charge | 170times(Cu 150mm²) |
| Crimping cycle | 3-6s(depend on the size of cable) |
| Voltage | 18V |
| Capacity | 3.0Ah |
| Charging time | 1 hours |
| Package | Aluminum alloy case |
| Charging die |
10,16,25,35,50,70,95,120,150,185,240,300mm² |
| Accessories: | |
| Battery | 2pcs |
| Charger |
1pcs |
Packing List
Crimping Tool * 1PC
Crimping Dies * 12Sets (10,16,25,35,50,70,95,120,150,185,240,300mm²)
Battery *2PCs
Charges *1PC
Shoulder Strap *1PC
Plastic Case *1PC
