Six Angle Hydraulic Crimping Tool for crimping cable wire lug termination connector

Six Angle Hydraulic Crimping Tool for crimping cable wire lug termination connector
Six Angle Hydraulic Crimping Tool for crimping cable wire lug termination connector

Large Image :  Six Angle Hydraulic Crimping Tool for crimping cable wire lug termination connector

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: YQK-240
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: get latest price
Packaging Details: carton
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 1000 Piece/Pieces per Month
Contact Now

Six Angle Hydraulic Crimping Tool for crimping cable wire lug termination connector

Description
Crimp Form: Six Angle Crimping Range: 10-120sqmm
Output: 120KN Working Stroke: 14mm
Weight: 4.2kg Mould: 10 16 25 35 50 70 95 120 Sqmm
Highlight:

hydraulic cable crimping tool

,

hydraulic wire cutter

Six Angle Hydraulic Crimping Tool for crimping cable wire lug termination connector



Product Features

Hydraulic crimping tool is a professional tool for crimping copper and aluminum lugs with different types, a wide range of crimping dies from 4-1000mm²  to suit for different size demand. The main crimping shape is hesagonal, sepcial shape design is provided.



Description

TECHNICAL
Crimping range Cu 16-240mm2
Crimping force 70KN
Package plastic box
Stroke 18mm
Length approx.475mm
Weight approx.3.6kgs
FEATURE

1. Hydraulic crimping tool is a professional tool for crimping copper and aluminum lugs with kinds types.

2. A wide range of cimping dies from 4mm2 to 1000mm2 to suit for different sie demanded.

3. The main criming shape is hexagonal.



Delivery time and Packing
Delivery :in 10-20days after accept payment
Packing :in plastic box or iron box
Payment :T/T best ,or paypal

Specification
  • ITEM No.:YQK-70
  • Press-joint range:4-70mm²
    Max Pressure:8T
    Max Travel:10mm
    Mould:4,6,8,10,16,25,35,50,70mm²
    crimping type:besiege pressure
  •
  • ITEM No.:YQK-120
  • Press-joint range:10-120mm²
    Max Pressure:12T
    Max Travel:14mm
    Mould:10,16,25,35,50,70,95,120mm²
    crimping type:besiege pressure
  •
  • ITEM No.:YQK-240
  • Press-joint range:16-240mm²
    Max Pressure:15T
    Max Travel:22mm
    Mould:16,25,35,50,70,95,120,150,185,240mm²
    crimping type:besiege pressure
  •
  • ITEM No.:YQK-300
  • Press-joint range:16-300mm²
    Max Pressure:15T
    Max Travel:22mm
    Mould:16,25,35,50,70,95,120,150,185,240,300mm²
    crimping type:besiege pressure

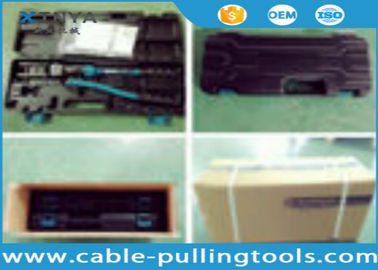

Detail picture



Six Angle Hydraulic Crimping Tool for crimping cable wire lug termination connector 0



Different Types of hydraulic crimping tool



Six Angle Hydraulic Crimping Tool for crimping cable wire lug termination connector 1



Picure of Mould



Six Angle Hydraulic Crimping Tool for crimping cable wire lug termination connector 2



Instruction Manual



Six Angle Hydraulic Crimping Tool for crimping cable wire lug termination connector 3
