Product Details:
|
| Capacity: | 0.8-5.4T | Sling Type: | Wire Rope |
|---|---|---|---|
| Speed: | Hand Operated | Application: | Cranes, Construction Hoist |
| Key Word: | Wire Rope Winch | Length Of Rope: | 20 Meter |
| MOQ: | 5 Sets | Warranty: | 1 Year |
| Highlight: | steel erection tools,lattice poles |
||

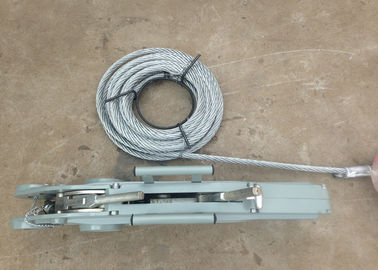

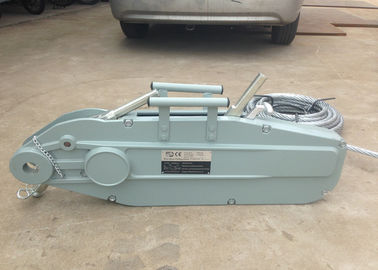

Hand Operated 0.8 - 5.4T Wire Rope Hand Winch Hoist Lever with 20 meter rope
Use and Characteristic
lever wire rope hoist also named Wire rope pullers,wire rope winch feature a lightweight, compact, high strength aluminum housing, smooth contour design with a large, flat bottom surface for increased stability in horizontal and vertical working positions.
Mechanism
Donnot need accompany a wire-dum for rolling up wire rope, and it is therefore small in size, light in weigh. By moving the handle left and right, wire rope passes through. As if it were handled hand by means of two chucks equipped inside the body. This is very simply done and noexperience is necessary.
Features
1. Measures small and light.
2. Equipped with two safty devices, and this guarantees safe operations.
3. Wire rope is drawn out straight, by distant operations regardless of wire lengths.
4. Transmission at a sppeed of 3 meters per minute, and this is the fasteset speed among all hand-driven handling devices.
5. Wire rope can be used at any working temperature degrees.
6. Equipped with a saftey hook, preventing wire rope from coming off while operation.
7. Most rationally peaneed, designed and duarble.
Structure
Technical Data
Tirfor Winch.pdf
|
Model item |
VIT-800 |
VIT-1600 |
VIT-3200 |
VIT5400 |
|
Rated forward hand power(N) |
341 |
438 |
438 |
745 |
|
Rated capacity(KG) |
800 |
1600 |
3200 |
5400 |
|
Rated forward travel(MM) |
≥52 |
≥55 |
≥28 |
≥30 |
|
Rope diameter(MM) |
8.3 |
11 |
16 |
20 |
|
Wire rope safty factor load capacity(TIMES) |
5 |
5 |
5 |
5 |
|
Max travelling load(KG) |
1200 |
2400 |
4000 |
8000 |
|
Net weight(KG) |
6.4 |
12 |
28 |
56 |
|
Max outer size(MM) A |
426 |
545 |
660 |
930 |
|
B |
238 |
284 |
325 |
480 |
|
C |
64 |
97 |
116 |
152 |
|
L1(CM) |
|
80 |
80 |
68 |
|
L2(CM) |
80 |
120 |
120 |
112 |
|
Packing (L*W*H)(CM) |
43*6.4*24 |
54.5*9.7*29 |
66*12*35 |
110*110*73 |
Diagram
