Product Details:
|
| Power Source: | Honda Engine | Application: | Cranes,hositing;pulling |
|---|---|---|---|
| Capacity: | 30KN | Rated Loading: | 3 Ton |
| Weight(kg): | 82 | Dimension(mm): | 800*450*500 |
| Engine: | GX160 Honda Engine | Name: | 3 Ton Petrol Engine Powered Used Winch For Sale With GX160 Honda Engine |
| Highlight: | steel erection tools,lattice poles |
||

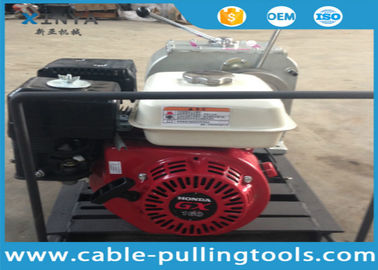

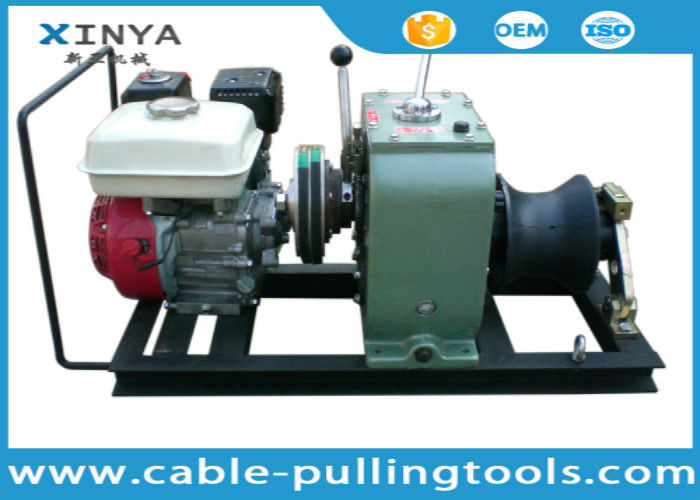

3 Ton Petrol Engine Powered Used Winch For Sale With GX160 Honda engine
Brief Introduction
Mortor winch is set up high-voltage transmission lines and laying of aerial construction machinery underground cables, smooth, convenient for Tower Group legislature, set up guide (land) lines, lifting, pulling in a variety of complex conditions. Motor cutter grinding widely used in electricity, telecommunications line construction group established tower or motor actinomycetes, also in place for lifting and pulling heavy objects, suitable for field sites without electricity, the use of flexible construction, docks and so on. The experiments and field practice has proved that with a reasonable structure, small size, light weight, utilitarian large, flexible operation, easy handling, etc., the majority of electric power, telecommunications operators welcome. Motor cutter grinding force divided by diesel powered winch and winch motor gasoline.
Application
High Quality 3 Ton Honda petrol Engine Powered Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
GX160 Honda Engine
1. Brand: Honda
2. Maximum output power: 5.5PS / 3600rpm
3. Rated output power: 4.8PS / 3600rpm
4. Maximum torque: 1.1kg m / 2500rpm
5. Single-cylinder , four-stroke , forced air cooling
6. Cylinder (mm): 68 × 45
7. Displacement (ml): 163
8. Direction of rotation: counterclockwise (for output shaft)
9. Carburetor type: Tap butterfly style
10. Ignition: transistor magnet ignition (non-contact)
11. Spark plug ID: NGK: BPR6ES
12. Starting method: recoil starter
13. Governor type: centrifugal heavy hammer
14. Air filter types: semi-dry / warm style / double type
15. Fuel tank capacity: 0.6L
16. Net weight (Kg): 15.0 (S-TYPE)
17. Dimensions (length X width X height) (mm):312X362X335 (S-TYPE)
Technical Data
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Line Pull(Ton) |
| JJM3-Q | Honda Petrol engine 6HP | Slow | 4 | 3 |
| Quick | 7 | 1.8 | ||
| Reverse | 3.5 |
Package
