Product Details:
|
| WLL: | 1/3T-55T | Material: | Carbon Steel, Alloy Steel, Stainless Steel 304 Or 316 |
|---|---|---|---|
| Rated Load(KN): | Different Size Available (3/16"-2 1/2") | Dimensions: | Standard |
| Usage: | Lifting And Connecting, Wire Rope Fittings, Chain Fittings, Marine Hardware Fittings | Type: | Screw Pin Anchor Shackles |
| Highlight: | building construction tools,basic hand tools |
||

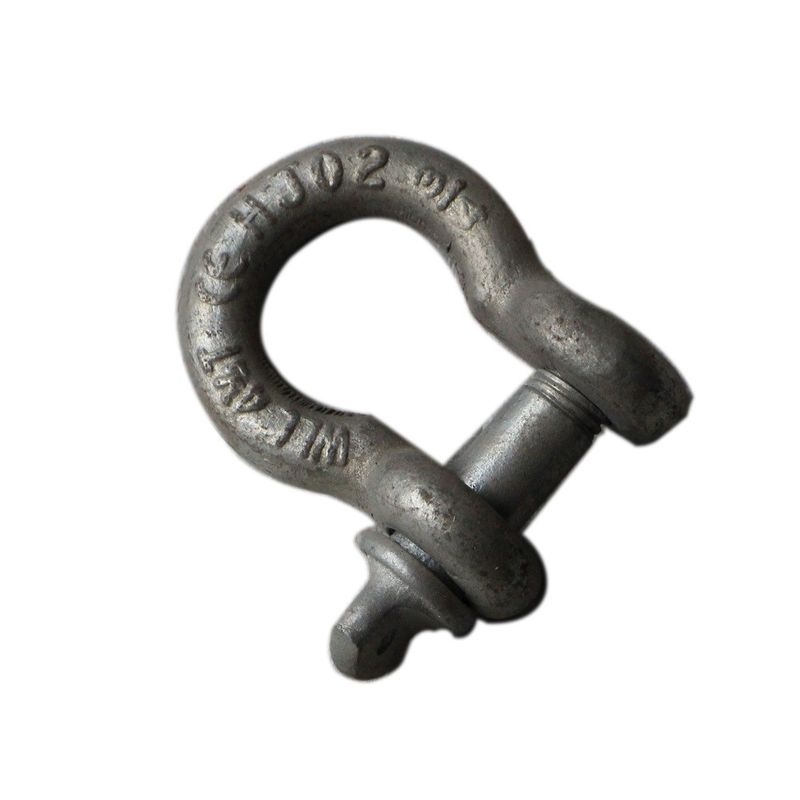

10-300 KN High Strength Forged Shackle with Carbon Steel for Construction
Application
It is used to support and tract wire rope and other tools in construction.
Features
1. Material: carbon steel
2. Competitive price
3. Treatment: drop forged
4. Fast delivery time
Quality Control
We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.
Our Values
1: Take First-Class Quality as Target and First-class Service.
2: As Responsibility, To Succeed By Scientific Management.
3: Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
|
Working | Dimensions | Weight Each | |||||||||||
| size | load | (in.) | (lbs.) | |||||||||||
| (in.) | limit | |||||||||||||
| (tons) | A | B | C | D | E | F | G | H | L | M | P | G-209 | ||
| S-209 | ||||||||||||||
| 3/16 | 1/3 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | 0.98 | 1.47 | 0.16 | 1.14 | 0.19 | 0.06 | |
| 1/4 | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.28 | 1.84 | 0.19 | 1.43 | 0.25 | 0.1 | |
| 5/16 | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 1.47 | 2.09 | 0.22 | 1.71 | 0.31 | 0.19 | |
| 3/8 | l | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 1.78 | 2.49 | 0.25 | 2.02 | 0.38 | 0.31 | |
| 7/16 | l1/2 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | 2.03 | 2.91 | 0.31 | 2.37 | 0.44 | 0.38 | |
| 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.5 | 1.31 | 1.19 | 2.31 | 3.28 | 0.38 | 2.69 | 0.5 | 0.72 | |
| 5/8 | 31/4 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.5 | 2.94 | 4.19 | 0.44 | 3.34 | 0.69 | 1.37 | |
| 3/4 | 43/4 | 1.25 | 0.88 | 2.81 | 0.75 | 2 | 1.81 | 3.5 | 4.97 | 0.5 | 3.97 | 0.81 | 2.35 | |
| 7/8 | 61/2 | 1.44 | 1 | 3.31 | 0.88 | 2.28 | 2.09 | 4.03 | 5.83 | 0.5 | 4.5 | 0.97 | 3.62 | |
| l | 81/2 | 1.69 | 1.13 | 3.75 | 1 | 2.69 | 2.38 | 4.69 | 6.56 | 0.56 | 5.13 | 1.06 | 5.03 | |
| l1/8 | 91/2 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.16 | 7.47 | 0.63 | 5.71 | 1.25 | 7.41 | |
| l1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3 | 5.75 | 8.25 | 0.69 | 6.25 | 1.38 | 9.5 | |
| l3/8 | 131/2 | 2.25 | 1.5 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | 0.75 | 6.83 | 1.5 | 13.53 | |
| l1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10 | 0.81 | 7.33 | 1.62 | 17.2 | |
| l3/4 | 25 | 2.88 | 2 | 7 | 1.84 | 5 | 4.19 | 8.86 | 12.34 | 1 | 9.06 | 2.25 | 27.78 | |
| 2 | 35 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 9.97 | 13.68 | 1.22 | 10.35 | 2.4 | 45 | |
| 21/2 | 55 | 4.13 | 2.75 | 10.5 | 2.71 | 7.25 | 5.69 | 12.87 | 17.84 | 1.38 |
||||
