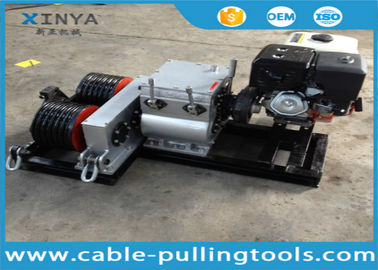

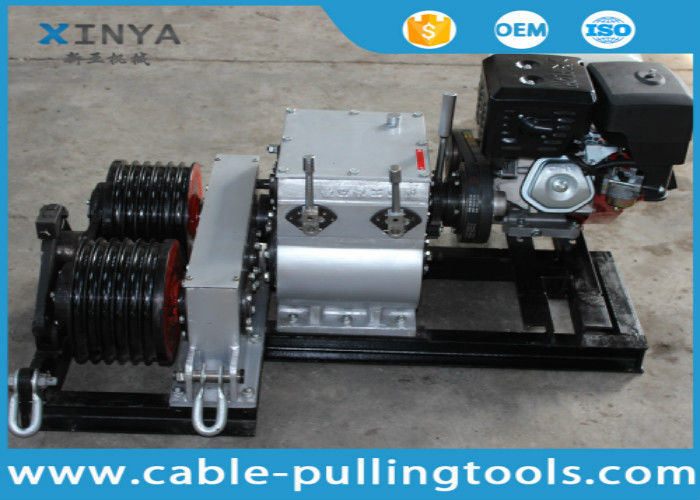

Product Details:
|
| Usage: | Construction Hoist | Power Source: | Gasoline Engine |
|---|---|---|---|
| Sling Type: | Wire Rope | Maximum Lifting Weight: | 50kn |
| Maximum Lifting Height: | 10m | Lift Speed: | 26m/min |
| Warranty: | One Year | MOQ: | 2 Sets |
| Weight(kg): | 200 | Dimension(mm): | 1000*670*600 |
| Highlight: | gasoline powered winch,cable pulling winches |
||
Application
Used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Our Values
1,Take First-Class Quality as Target and First-class Service.
2,As Responsibility, To Succeed By Scientific Management.
3,Customer in Heart, Quality in Hand, Technology in the Lead.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Technical Data
| Model/No. | JJM-5SQ/10013 | |||||
| Engine | Honda/Yamaha | |||||
| Power | 6.3KW,3600rpm | |||||
| Suitable Wire Rope(mm) | 15 | |||||
| Bottom diameter of Groove(mm) | 240 | |||||
| No.Of Groove | 6 | |||||
| Gear | Forward | Reverse | ||||
| Slow I | Slow II | Fast I | Fast II | Slow | Fast | |
| Pull Force(KN) | 50 | 30 | 13 | 10 | No lifting | No lifting |
| Speed(m/min) | 6 | 10 | 23 | 30 | 5 | 17 |
| Weight(KG) | 300 | |||||
| Dimension(mm) | 1330×800×600(L×W×H) | |||||
