Product Details:
|
| Usage: | Tightening | Weight: | 3.2- 5.2 Kg |
|---|---|---|---|
| Wire Length: | 1210- 2000 Mm | Rated Load: | 1 - 3 T For Wire Rope Puller |
| Application: | Tight Line | Type: | Ratchet Tightener |
| Highlight: | building construction tools,basic hand tools |
||

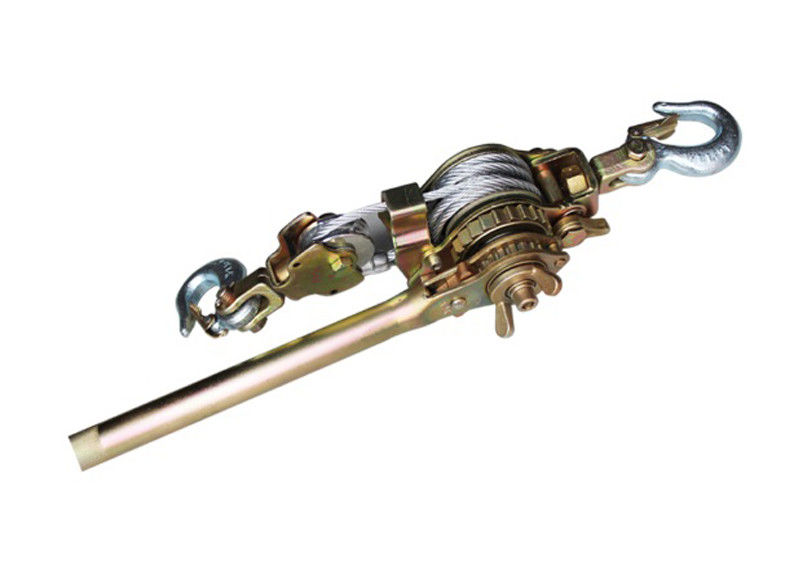

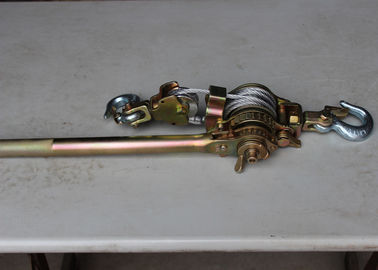

1 - 3 Ton Hand Cable Puller Wire Rope Ratchet Puller for Tightening
Application
Hand Winch Cable Puller Wire Rope Puller is used in power transmission construction, telecommunications engineering, tighten the wire.
Designed for conductor/cable tensioning applications within the Electricity distribution and Telecommunication industry.
Characteristic
Forward/reverse load holding mechanism
Heavy duty - Quality ratchet mechanism
360º Handle movement
Fast advance mechanism
Supplied with Test Certificate
Technical Data for Hand Winch Cable Puller Wire Rope Puller
| Product No. | Model Type | Rated Load(KN) | Max Length(mm) | Min Length(mm) | Weight(kg) |
| 80152 | P-1000 | 10 | 1210 | 410 | 3.2 |
| 80153 | P-1500 | 15 | 1500 | 480 | 4.2 |
| 80154 | P-1500A | 15 | 2000 | 480 | 4.7 |
| 80155 | P-2000 | 20 | 1500 | 480 | 4.8 |
| 80156 | P-3000 | 30 | 1500 | 510 | 5.2 |
