508 Series MC Nylon Sheave Large Diameter Stringing Pulley Block for Power Construction

508 Series MC Nylon Sheave Large Diameter Stringing Pulley Block for Power Construction
508 Series MC Nylon Sheave Large Diameter Stringing Pulley Block for Power Construction
508 Series MC Nylon Sheave Large Diameter Stringing Pulley Block for Power Construction 508 Series MC Nylon Sheave Large Diameter Stringing Pulley Block for Power Construction 508 Series MC Nylon Sheave Large Diameter Stringing Pulley Block for Power Construction

Large Image :  508 Series MC Nylon Sheave Large Diameter Stringing Pulley Block for Power Construction

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: SHWQN-508*75
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get latest price
Packaging Details: carton
Delivery Time: 20-30 workdays after payment
Payment Terms: L/C,T/T,
Supply Ability: 500sets/month
Contact Now

508 Series MC Nylon Sheave Large Diameter Stringing Pulley Block for Power Construction

Description
Application: Overhead Transmission Line Size: 508mm
Usage: Stringing Type: Block And Tackle
Material Of Sheave 1: Nylon Sheave Product Name: 508 Series MC Nylon Sheave Large Diameter Stringing Pulley Block For Power Construction
Rated Load: 20-60KN Sheave: 1-5

508 Series MC Nylon Sheave Large Diameter Stringing Pulley Block for Power Construction


Model 508 series

Note: maximum suitable condctor LGJ400. The table below is 100mm wheel width and the other dimensions can be customizeraccording to customer's requirement.
Model
No. of wheel
Rated load(KN)
Weight(kg)
Outside weight diameter(mm)
Root diameter(mm)
Features
SHD508
1
20
25
508
408

MC nylon sheave
SHS508
3
40
46
508
408
SHW508
5
60
70
508
408

Model 660 series

Note: maximum suitable condctor LGJ500. The table below is 100mm wheel width and the other dimensions can be customizer according to customer's requirement.
Model
No. of wheel
Rated load(KN)
Weight(kg)
Outside weight diameter(mm)
Root diameter(mm)
Features
SHD660
1
30
40
660
560

MC nylon sheave
SHS660
3
40
70
660
560
SHW660
5
70
103
660
560
SHW66ON
5
70
140
660
560
Middle: cast steel sheave
SHQ660
7
100
165
660
560
Mcnylon sheave, middle sheavewidth 110mm
SHQ660N
7
100
203
660
560
Middle: cast steel sheave

Model 822 series

Note: maximum suitable condctor LGJ630. The table below is 110mm wheel width and the other dimensions can be customizer according to customer's requirement.
Model
No. of wheel
Rated load(KN)
Weight(kg)
Outside weight diameter(mm)
Root diameter(mm)
Features
SHD822
1
40
60
822
710



MC nylon sheave
SHS822
3
80
120
822
710
SHW822
5
100
190
822
710
SHQ822
7
150
236
822
710
SHW822N
5
100
240
822
710

Middle: cast steel sheave
SHQ822N
7
150
272
822
710
SHJ822
9
200
420
822
710

Model 916 series

Note: maximum suitable condctor LGJ800. The table below is 110mm wheel width and the other dimensions can be customizer according to customer's requirement.
Model
No. of wheel
Rated load(KN)
Weight(kg)
Outside weight diameter(mm)
Root diameter(mm)
Features
SHD916
1
50
70
916
800



MC nylon sheave
SHS916
3
80
132
916
800
SHW916
5
120
198
916
800
SHQ916
7
180
270
916
800
SHW916N
5
120
260
916
800

Middle: cast steel sheave
SHQ822N
7
180
321
916
800

Model 1040 series

Note: maximum suitable condctor LGJ1000. The table below is 125mm wheel width and the other dimensions can be customizer according to customer's requirement.
Model
No. of wheel
Rated load(KN)
Weight(kg)
Outside weight diameter(mm)
Root diameter(mm)
Features
SHD1040
1
60
85
1040
900



MC nylon sheave
SHS1040
3
120
190
1040
900
SHW1040
5
150
340
1040
900
SHQ1040
7
200
390
1040
900
SHJ1040
9
300
789
1040
900
SHE1040
11
300
970
1040
900
SHW1040N
5
150
395
1040
900
Middle: cast steel sheave
SHQ1040N
7
200
463
1040
900

Model 1160 series

Note: maximum suitable condctor LGJ1250. The table below is 150mm wheel width and the other dimensions can be customizer according to customer's requirement.
Model
No. of wheel
Rated load(KN)
Weight(kg)
Outside weight diameter(mm)
Root diameter(mm)
Features
SHD1160
1
50
112
1160
1000

MC nylon sheave
SHS1160
3
120
245
1160
1000
SHS1160N
3
120
355
1160
1000
Middle: cast steel sheave

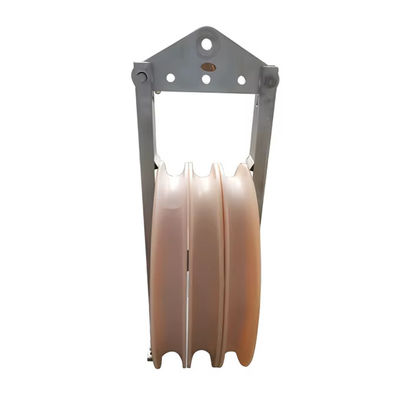

508 Series MC Nylon Sheave Large Diameter Stringing Pulley Block for Power Construction 0

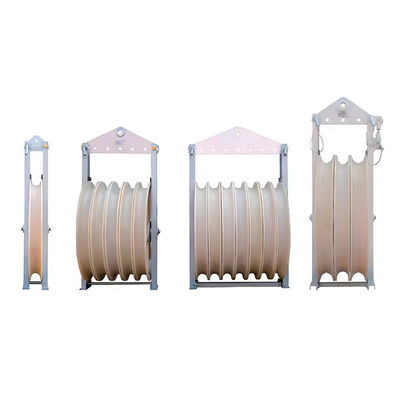

508 Series MC Nylon Sheave Large Diameter Stringing Pulley Block for Power Construction 1
