2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line

2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line
2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line
2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line 2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line 2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line

Large Image :  2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line

Product Details:
Place of Origin: Jiangsu, China
Brand Name: XINYA
Certification: ISO
Model Number: SA-YZ2×40
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get latest price
Packaging Details: standard export package
Delivery Time: 60-90days after payment
Payment Terms: L/C,T/T,
Supply Ability: 1 Set/Sets per Month
Contact Now

2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line

Description
Maximum Tension(kN): 2x45/1x90kN Continuous Tension(kN): 2x40/1x80kN
Maximum Speed (km/h): 5 Bull-wheel Diameter: 1300/1500mm
Max Conductor Diameter: 40mm Groove Number: 2x5
Total Weight: 6250kg Overall Dimension: 4400×2280×2550mm
Highlight:

Wire Tensioner Hydraulic Cable Tensioner

,

2x40KN Hydraulic Cable Tensioner

,

Overhead Line Hydraulic Cable Tensioner

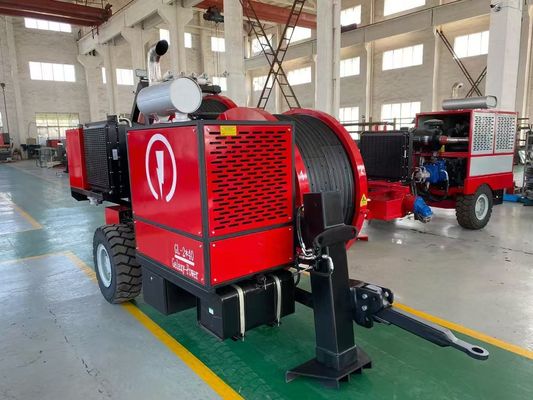

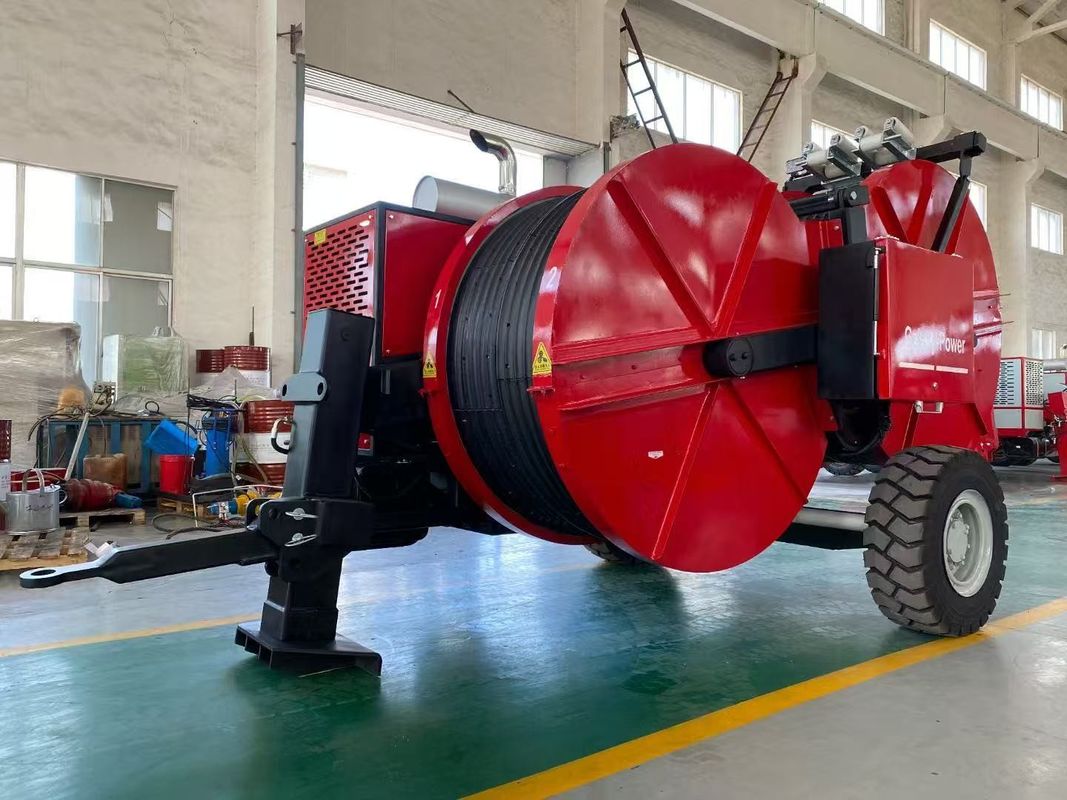

2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line

SA-ZY-2x40KN Overhead Line Stringing Equipment
Our GL2x40 (SA-ZY 2x40)  is suitable to string one or two ropes or bundled conductors with two pairs of bull-wheels
with completely independent controls.
The bull-wheel grooves are made up of high resistance interchangeable nylon sectors.
Our GL2x40 (SA-ZY 2x40)  is completely electronically controlled.

SA-ZY-2x40KN Overhead Line Stringing Equipment  Performance
Max intermittent tension 2x45/1x90kN
Max continuous tension 2x40/1x80kN
Speed at max pull 2.5km/h
Max speed 5km/h
Tension at max speed 2x20/1x40kN
Max reverse pulling force 2×35/1x70kN
Max reverse pulling speed 5km/h


SA-ZY-2x40KN Overhead Line Stringing Equipment  Characteristics

Bull-wheel diameter 1300/1500mm
Max conductor diameter 40mm
Groove number 2x5
Total weight 6250kg
Overall dimension 4400×2280×2550mm


SA-ZY-2x40KN Overhead Line Stringing Equipment Main Configuration

Engine Cummins
Hydraulic pump GermanRexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Speed reducer German Rexrothn
Hydraulic meter German WIKA
Operating handle German Rexroth


SA-ZY-2x40KN Overhead Line Stringing Equipment Configuration

·Hydraulic dynamometers
·Hydraulic oil cooling system
·Digital speed and meter counter
·Hydraulic front stabilizer
·Grounding connection point
·Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor


SA-ZY-2x40KN Overhead Line Stringing Equipment Hydraulic Transmission
·The machine can realize step less speed
·The machine is provided with tension presetting system


SA-ZY-2x40KN Overhead Line Stringing Equipment Additional Devices
·Lighting system for the trailer
·2 hydraulic rope/conductor clamp (extra charge)
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Digital speed and meter counter
2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line 02x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line 1
