Product Details:
|
| Item: | Versatile Stringing Block | Sheave: | 178x76mm |
|---|---|---|---|
| Caliper Height: | 95-159mm | Wheel: | Aluminum |
| Rated Load: | 10KN | Caliper CCrossarm Width: | 99-175mm |
| Highlight: | Special universal stringing block,transmission universal stringing block,Versatile transmission stringing blocks |
||

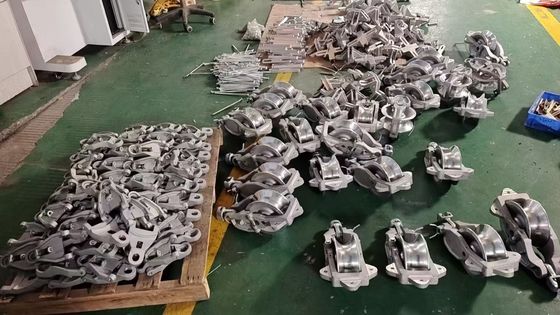

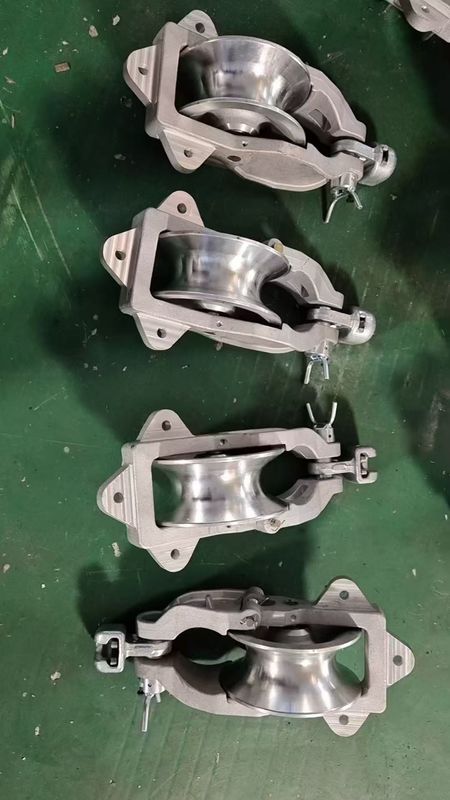

It is a versatile block, it either used in the head of insulator string, or fixed on the caliper of crossarm.
Features
Adjustable to five positions using cross bracket that fits crossarms up to 125 x 150 mm;100% positive locking spring loaded;Head pin assembly has large loop for hot stick operation;Light but extremely rugged;Sheave and crossarm bracket are permanent mould castings with heat treatment;Anti-friction ball bearings are lubricated for life of block under normal conditions;Neoprene and Urethane linings are available;
Additional attachment options available on request.
Data Shee
|
Model |
Rated load |
Sheave dimensions |
Weight |
Caliper crossarm width |
Caliper Height |
Caliper weight |
|
kN |
mm |
kg |
mm |
mm |
kg |
|
|
CSB |
10 |
Φ178*76 |
4.3 |
99-175 |
95-159 |
1.6 |
