Product Details:
|
| Item: | Stringing Block Pulley Block | Sheave: | 178x76mm |
|---|---|---|---|
| Caliper Height: | 95-159mm | Wheel: | Aluminum |
| Rated Load: | 10KN | Caliper CCrossarm Width: | 99-175mm |
| Highlight: | crossarm mounted stringing block,block stringing equipment accessories,Crossarm Mounted transmission stringing blocks |
||

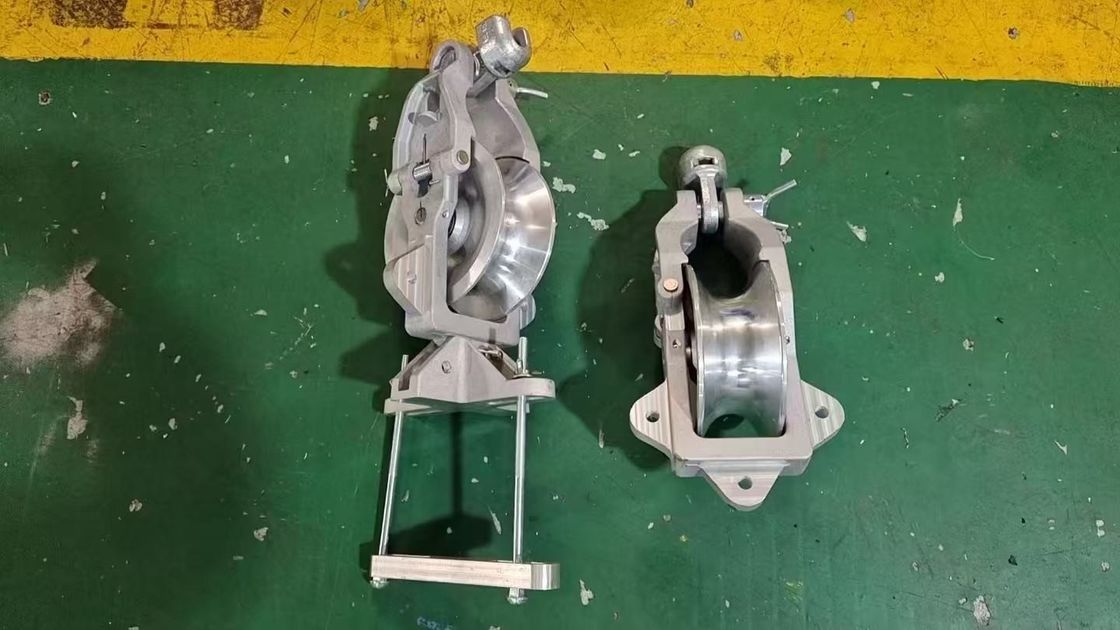

It is a versatile block, it either used in the head of insulator string, or fixed on the caliper of crossarm.
Features
Adjustable to five positions using cross bracket that fits crossarms up to 125 x 150 mm
100% positive locking spring loaded
Head pin assembly has large loop for hot stick operation
Light but extremely rugged
Sheave and crossarm bracket are permanent mould castings with heat treatment
Anti-friction ball bearings are lubricated for life of block under normal conditions
Neoprene and Urethane linings are available
Additional attachment options available on request.
Data Sheet
Performance Transmission Line Tools Crossarm Mounted Stringing Block
|
Model |
Rated load |
Sheave dimensions |
Weight |
Caliper crossarm width |
Caliper Height |
Caliper weight |
|
kN |
mm |
kg |
mm |
mm |
kg |
|
|
CSB |
10 |
Φ178*76 |
4.3 |
99-175 |
95-159 |
1.6 |
