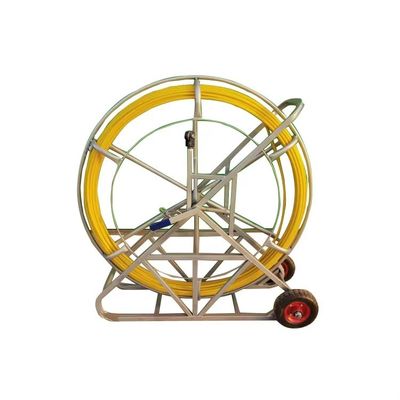

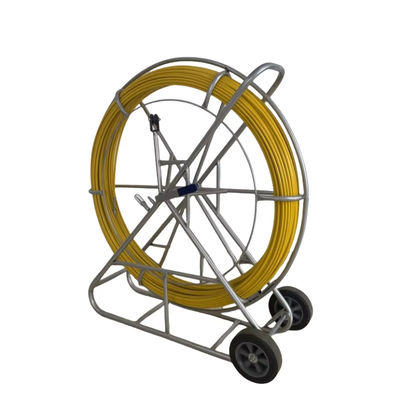

Length Fiberglass Fiber Snake Cable Duct Rodder Push Rod For Telecom Optical Fiber Cable Pulling And Cleaning

Length Fiberglass Fiber Snake Cable Duct Rodder Push Rod For Telecom Optical Fiber Cable Pulling And Cleaning
Length Fiberglass Fiber Snake Cable Duct Rodder Push Rod For Telecom Optical Fiber Cable Pulling And Cleaning
Length Fiberglass Fiber Snake Cable Duct Rodder Push Rod For Telecom Optical Fiber Cable Pulling And Cleaning Length Fiberglass Fiber Snake Cable Duct Rodder Push Rod For Telecom Optical Fiber Cable Pulling And Cleaning Length Fiberglass Fiber Snake Cable Duct Rodder Push Rod For Telecom Optical Fiber Cable Pulling And Cleaning

Large Image :  Length Fiberglass Fiber Snake Cable Duct Rodder Push Rod For Telecom Optical Fiber Cable Pulling And Cleaning

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: P
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Get latest price
Packaging Details: Carton
Delivery Time: 7-10 workdays after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/day
Contact Now

Length Fiberglass Fiber Snake Cable Duct Rodder Push Rod For Telecom Optical Fiber Cable Pulling And Cleaning

Description
Rod Diameter: 6-16mm Iron Frame: Steel With High-temperature Sprayed Plastic Or Spray Coating
Product: Fiberglass Duct Rodder Working Temperature: -40°C To +80°C
Surface Treatment: Fibreglass Reinforced Plastic Tensile Strength: 46.5Mpa
Highlight:

telecom fiberglass duct rodder

,

optical fiber cable fiberglass duct rodder

,

pulling and cleaning fiberglass duct rodder

Length Fiberglass Fiber Snake Cable Duct Rodder Push Rod For Telecom Optical Fiber Cable Pulling And Cleaning



FRP rod information

  • 1. Light weight, durable, good resistance to chemical and corrosion.
  • 2. High tensile strength and bending properties to make it go through narrow pipes easily.
  • 3. good temperatures adaptability, it will not soften in hot weather nor become brittle in cold weather, its usability will not be affected by temperature
  • 4. Rod jacket: developed composite materials, hard, smooth and wear-resistant.
  • 5. meter marks: available
  • 6. Rod colors: yellow, other colors are optional
  • 7. Rod Length (m): 30-350m
  • 8. Rod Diameter: 4mm-16mm

Frame and reel information

  • 1. Equipped with brake device, the rotating or stopping of the rod can be easily realized just by turning hand.
  • 2. Tilting type handle, convenient for pushing and pulling.
  • 3. Guide roller and fixed ring: fix the rod end; protect the rod jacket from being scratched.
  • 4. Frame color: yellow, other colors are available.

Length Fiberglass Fiber Snake Cable Duct Rodder Push Rod For Telecom Optical Fiber Cable Pulling And Cleaning 0

Data Sheet

Fibreglass Duct Rod.pdf

1 - Glass Reinforced Composite core:
General properties
Property Value
Iner core E-Glass Fiber
Glass Content of Inner Part 75-80%
Material of Pulling Rod Epoxy fiber glass (inner)
High density Polyethylene(outer)
Density ＞1.9 gr/cm3
Diameter Tolerance ± 0.10mm
Work situation temperature - 40 0C to +800C
Mechanical properties
Property Value
Minimum pulling strength 4000 N±5%
Tensile Modulus ＞30000 Mpa
Consistency of rod 150gr/m±5%
Flexural Modulus ＞30000 Mpa
Elongation at Break 2.5-3%
2 - Polyethylene cover
Material:
Medium Density Polyethylene Resin for the insulating and jacketing of Telecommunication Cables.
Property Value
Tensile Strength ＞15N/mm2
Environmental Stress & crack resistance >1000 hr.
Heat Stability OK.
Carbon Black OK.

Length Fiberglass Fiber Snake Cable Duct Rodder Push Rod For Telecom Optical Fiber Cable Pulling And Cleaning 1
