Product Details:
|
| Material: | Nylon Wheel | Type: | Pulley Block |
|---|---|---|---|
| Weight(kg): | 25-245 | Wheel Dimension(mm): | 822x710x110 |
| Application: | Stringing | Name: | 822mm Large Diameter Cable Pulley Block Stringing Blocks |
| Highlight: | cable pulley block stringing,822mm stringing blocks,large diameter stringing blocks |
||

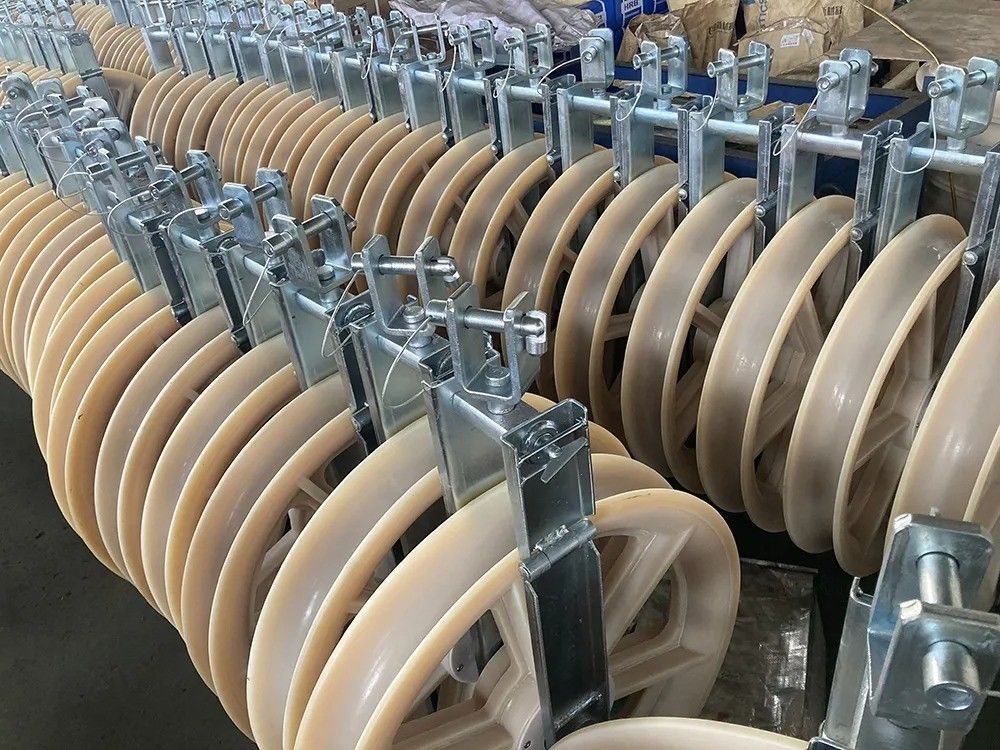

822MM LARGE DIAMETER CABLE PULLEY BLOCK STRINGING BLOCKS
This 822mm Large Diameter Stringing Block possesses the dimension (outside diameter*root diameter*sheave width) of Φ822× Φ710× 110 (mm). Its maximum suitable conductor is LGJ630, which means that the aluminum of our conducting wire has the maximum cross section of 630 square millimeters.
The 10148 type product is designed with the assembled structure. It is really convenient to separate the conductor from middle sheave, thus helping reduce the weight during transportation. Dimension of the middle steel sheave is φ520×φ400×120 mm. Furthermore, we can also provide the rubber coated aluminum sheave, the rubber coated MC nylon sheave, as well as the reinforced nylon sheave coated by polyurethane.
Features
Technical Data
|
Item Number |
Model |
Number of Sheave |
Rated Load(KN) |
Weight(kg) |
Features of Sheave |
|
10141 |
SHDN822 |
1 |
30 |
40 |
MC Nylon sheave |
|
10142 |
SHSQN822 |
3 |
60 |
118 |
Middle: cast steel sheave |
|
10143 |
SHWQN822 |
5 |
120 |
180 |
|
|
10146 |
SHQ822 |
7 |
120 |
285 |
Middle: cast steel sheave |
|
10148 |
SHJ822 |
9 |
150 |
445 |
