Product Details:
|
| Selling Point: | Large Diameter | Wheel Diameter: | 508/660/750/822/916/1040 |
|---|---|---|---|
| Weight: | 20-220kg | Application: | Power Line Construction |
| Material: | Steel | Product Name: | Transmission Line Stringing Tools |
| Standard: | International Standard | Surface Treatment: | Galvanized |
| Type: | Stringing Tools | Warranty: | 1 Year |
| Highlight: | aluminum nylon stringing pulley blocks,conductor stringing pulley blocks,105kn conductor stringing blocks |
||
Description

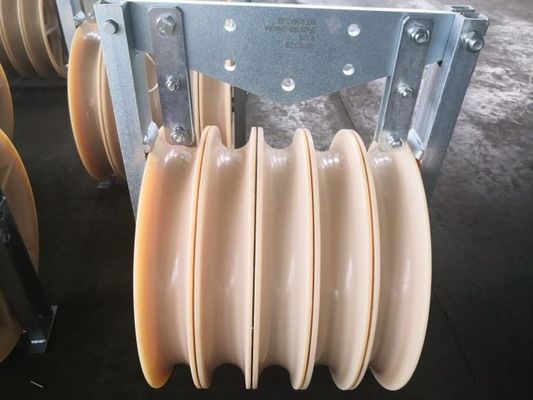

Three sheaves Helicopter Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10102H | SH3Z508 | 300-400 | 40 | 61 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10105H | SH3ZL508 | 300-400 | 40 | 47 | |
| 10122H | SH3ZL660 | 400-500 | 40 | 106 | |
| 10125H | SH3ZLN660 | 400-500 | 40 | 92 | |
| 10146H | SH3ZLN822 | 500-700 | 60 | 128 | |
| 10107H | SH3Z508 | 300-400 | 40 | 43 | Nylon, optional can be lined with neoprene |
| 10127H | SH3Z660 | 400-500 | 40 | 76 | |
| 10132H | SH3Z750 | 500-600 | 60 | 98 | |
| 10142H | SH3Z822 | 600-700 | 60 | 110 | |
| 10152H | SH3Z916 | 700-800 | 75 | 126 | |
| 10166H | SH3Z1040 | 800-900 | 105 | 200 |
Application:
It is suitable to string two or three stranded aluminum and ACSR conductors on tangent structures through helicopter. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 508mm, 660mm,822mm aluminum alloy sheave can be lined with neoprene. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.
Features
With specially designed fly bar system and open door system to guide the pilot rope into the groove of center sheave, the running board can go through the sheaves easily.
