Product Details:
|
| Max Load: | 10KN | Engine: | Honda Engine |
|---|---|---|---|
| Power: | 5.5HP | Net Weight: | 36kg |
| Dimension: | 770*500*380mm | Usage: | Cable Pulling |
| Highlight: | gasoline powered winch,engine powered winch,Gasoline Cable Winch Puller |
||

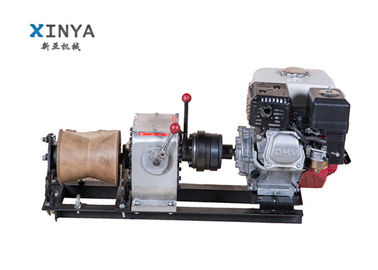

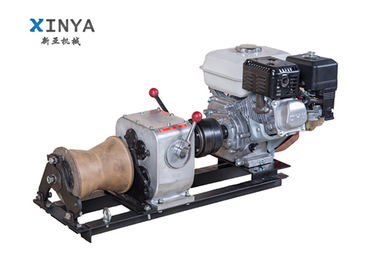

1 Ton Small Gasoline Capstan Winch Cable Pulling Tools With Honda GX160 5.5HP
Winch Introduction
A winch is a mechanical device that is used to pull in (wind up) or let out (wind out) or otherwise adjust the "tension" of a rope or wire rope (also called "cable" or "wire cable"). In its simplest form it consists of a spool and attached crank. In larger forms, winches stand at the heart of machines as diverse as tow trucks, steam shovels and elevators. The spool can also be called the winch drum. More elaborate designs have gear assemblies and can be powered by electric, hydraulic, pneumatic or internal combustion drives. Some may include a solenoid brake and/or a mechanical brake or ratchet and pawl device that prevents it from unwinding unless the pawl is retracted.
Application
Powered winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying electrical cables underground.
They can complete the tasks of heavy-lifting and dragging such as erecting the wire.
Testified by the experiments and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convient transporting.
Based on so many advantages, this Powered winch is popular with the electric workers.
Features
1. Reasonable structure
2. Small volume
3. Light weight
4. Strong power
5. Nimble operation
6. Convenient transporting.
Technical Data
| No. | Model | Pull Force(KN) | Speed(m/min) | Engine | Weight(kg) |
| 10001 | JJM1Q | 8 | 6 | HONDA/ YAMAHA |
50 |
| 6 | 18 | ||||
| No lifting | 15 | ||||
| 10002 | JJM1D | 8 | 6 | Electric Engine 22V/380V/ 2.2KW |
55 |
| 6 | 18 | ||||
| No lifting | 15 | ||||
| 10003 | JJM1C | 8 | 6 | Water Cooled Diesel Engine |
60 |
| 6 | 18 | ||||
| No lifting | 15 |
