Product Details:
|
| Traction: | ＞300KG | Pulling Speed: | 1m -1.6 M/s |
|---|---|---|---|
| Outlet Opening Size: | 5mm*45mm | Belt Size: | 1000m*60mm |
| Machine Size: | 80*60*80cm | Name: | Hot Sell Optical Fiber Cable Winch Optic Fiber Recycle Machine |
| Highlight: | wire rope clip,fiber optic cable stripping tool,1.6 m/s Optical Fiber Cable Winch |
||
Optical cable traction engine for pulling optical cable ,fiberglass cable, fiberglass duct rod, duct rodder, replace workerman for pulling, the force is 200kg, so reduce the member.
1.The machine is mainly composed of engine, gearbox and transmission device. The clamping of the transmission device is used up and down to make the cable effective. Tractors with gasoline engine as power source, the transmission drive shaft gear chain, the chain bite transmission device, drive transmission belt, realize the straight line, the machine is also equipped with support bar to support machine in the operation of the cable force, keep the machine fixed transmission cables.
2. The machine is easy to operate, and the four operating stops are (push, pull, idle, and slow) to select the desired position. Before changing gear, you must adjust the throttle to the idle state, and then control the accelerator on your hand when you hang it. Turn off the flame switch after use.
Product Description
Cable Hauling Machine is an electric machine for laying power cable (or communication cable).It can be used with cable tractor, hoist and other cable laying machine, which can save man power and material greatly and reduce construction cost effectively.

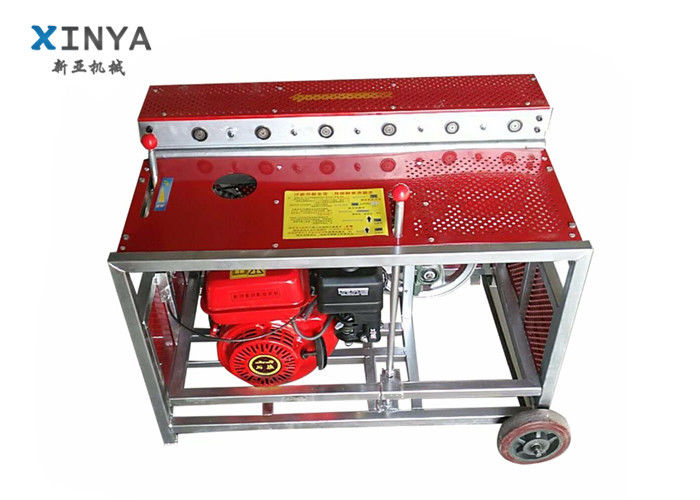

Product Display
Specification
Quick Detail of Cable Hauling Machine:
|
Traction |
＞300KG |
|
Pulling Speed |
1m -1.6 m/s |
|
Outlet opening size |
5mm*45mm |
|
Belt Size |
1000m*60mm |
|
Engine Gasoline Tank |
4L,(92#,93#Gasoline) |
|
Total Power |
4.3KW |
|
Machine Size |
80*60*80cm |
|
Machine Weight |
90KG |
|
Line Bracket Dimension |
Out diamerer:110cm Inner Diameter:85cm |
|
Suitable Diameter Of Cable |
Cable wire rope,Cable steel |

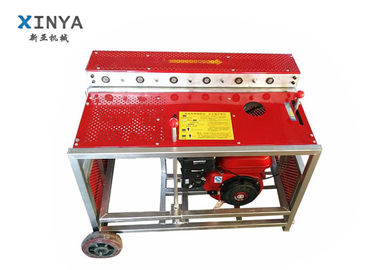

Part of Cable Hauling Machine details:
Application
Cable Hauling Machine widely used,can replace the artificial pull, the speed is quick, does not injure the cable.
