Product Details:
|

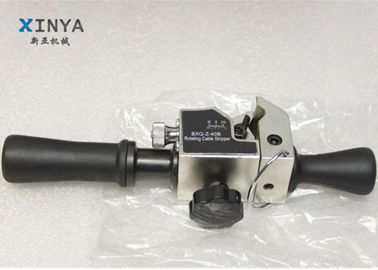

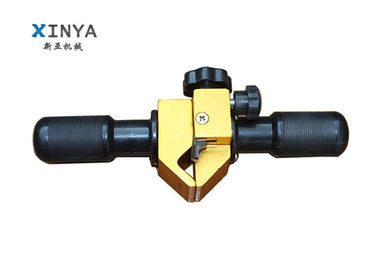

| Name: | Cable Stripper | Usage: | Cable Stripping |
|---|---|---|---|
| Item: | Wire Stripper | Weight: | 1.04kg |
| Size: | 275*95*60mm | Warranty: | 1 Year |
| Highlight: | construction hand tools,building construction tools |
||
Tools Specification and Feature
1. Application: Strip the end and middle of Cable (insulation layer)
2. Stripping Capacity: Dia. 14-40mm (insulation Layer)
3. Durable Blades can be re-sharpened and purchased separately
4. For Stripping Operation: 2 steps (adjust blade to proper depth------turn tool around cable, strip cable like a pencile sharpener)
5. Fabric Bag package for easy carrying and light weight
Feature:
1.Stripping thickness can be adjusted
2.Suitable for stripping the end and the middle of conducting wire and cable
Parameter:
| Model | Weight | Size(mm) | Capacity | Stripper thickness | ||
| BXQ-Z-40B | 1.04kg | 275*95*60 | Dia(mm) | Inch | Max end cable | Max middle cable |
| 14-40 | 0.55-1.57 | 6mm | 4mm | |||
| Model No. | Application | Weight | Package | |
| PG-5 | For Cable (insulation Layer) |
Over Dia.25mm | 0.15 | Fabric Case |
| BXQ-Z-40A | End or Middle Of Cable (insulation Layer) |
Dia.14-40mm | 1.04 | Fabric Bag |
| BX-30 | End or Middle Of Cable (insulation Layer) |
Dia.15-30mm | 0.69 | Plastic Case |
| BX-40 | End of Cable (insulation and semiconductor Layer) |
Dia.15-40mm | 0.65 | |
| BX-90 | End of Cable (insulation and semiconductor Layer) |
Dia.40-90mm | 2.47 | |
| KBX-45 | End of Cable (insulation Layer) |
Below Dia.45mm | 0.6 | |
| KBX-65 | End of Cable (insulationand semiconductor Layer) |
Below Dia.65mm | 1.4 | |
| GBX-720 | Aluminium Wire Of ACSR | Dia.20-40mm (240mm2-720mm2) |
1.5 | |
| SK-40 | For Cable (insulation Layer) |
Dia.20-40mm | 0.8 | |
| SK-50 | For Cable (insulation Layer) |
Dia.20-50mm | 0.8 |
|
