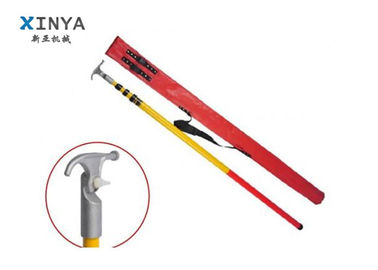

Product Details:
|
| Name: | Insulated Telescopic | Section: | 4 |
|---|---|---|---|
| Length: | 7.5m | Withstand Voltage (KV): | 500KV |
| Application: | High Voltage Switch Out Operating. | Weight: | 3kg |
| Highlight: | protective tools,construction safety products |
||
● Triangle shape design keeps the sections aligned during extension and retraction.
● Push button release for stick extension and retraction.
● Telescopic design allows for easy assembly, storage and transportation.
● Universal end fitting accepts a wide variety of standard attachments.
● Easy-to-replace sections.
● Carrying bag included.
● Optional Height Measurement Marking
● Optional Polyurethane Foam Filled
● Rubber Foot (or Plastic)
● Wortai Triangle shape enables each section to lock in automatically no need to search for the button
Feature
Easier to use (due to the slot function)
Safer than any other insertion tool
Quicker.
More efficient - Centre of gravity improved.
Universal - It fits at the end of the flower end of any link stick, all fuse carriers & surge arrestors
Fuse carrier functionality
Safer & Time saving up 50% faster to replace fuse.
Push button release for stick extension and retraction.
Telescopic design allows for easy assembly, storage and transportation.
Universal end fitting accepts a wide variety of standard attachments.
Easy-to-replace sections.

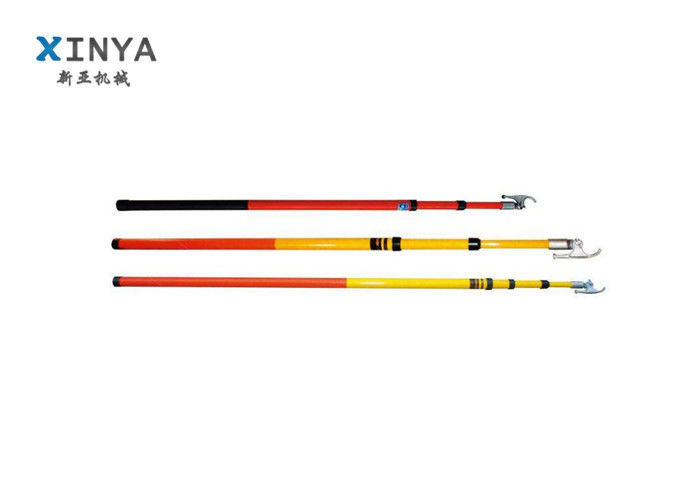

Specifications of fiberglass insulated telescopic hot stick
| Name | Model |
Section NO. |
Extension length,m |
Retracted length,m |
Weight | NO.for each box |
Package cm |
Withstand Voltage |
| Triangle Hot stick |
CK-TB4 | 5 | 4 | 1.2 | 2.1 | 20units | 30*30*230 | 10-500kv |
| CK-TB6 | 5 | 6 | 1.5 | 3.3 | 20units | 30*30*230 | ||
| CK-TB10 | 6 | 10 | 2.14 | 5.6 | 20units | 30*30*230 | ||
| CK-TB12 | 7 | 12 | 2.19 | 5.95 | 20units | 30*30*230 |
Application of fiberglass insulated telescopic hot stick
1.For opening and closing disconnect switches
2.Replacing fuses on transformers
3.Pruning tree limbs
4.Fluorescent gree tip section is highly visible and has a form core;
5.Several models and lengths available
6.The stick metal head shape can be customized!
Other types hot stick and head we can do
