Product Details:
|
| Type: | Hydraulic Compressor | Weight(kg): | 40 |
|---|---|---|---|
| Max Compression(KN): | 1250 | Max Oil Pressure(Map): | 94 |
| Applicable Conductor: | ≤ACSR720 | Stroke(mm): | 25 |
| Highlight: | construction hand tools,building construction tools |
||

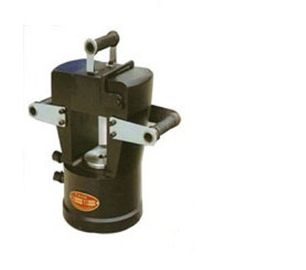

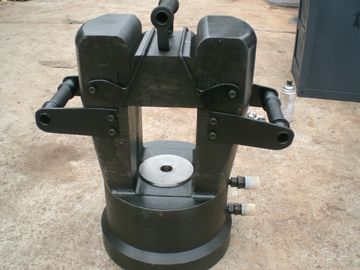

1250KN hydraulic Compressor QY-125 max oil pressure 94Mpa for ACSR less than 720
This hydraulic crimping tool is able to crimp the conductor, earth wire, as well as the terminals joining aluminum wires to copper wires. Our product can be divided into various types. Both 16101 and 16102 types are equipped with the manual or single-tube electric pump. 16103, 16104 and 16105 types are fitted with the super high pressure hydraulic pump station. In addition, the matched dies need to be purchased additionally.
Uses:
To compress conductor ,earthwire and cupreous-aluminous terminal.
Technical Parameters
| Item number | Model | Maximum Compression(kN) | Maximum oil pressure (MPa) | Suitable copper terminals | Stroke(mm) | Weight (kg) |
| 16101 | SCHX-25 | 250 | 70 | 50-630 | 5.5 | |
| 16101A | FYQ-630A | 316 | 70 | 150-630 | 35 | 15.4 |
| 16101B | SCHX-45 | 450 | 70 | 50-800 | 10.6 | |
| 16102 | QY-35 | 350 | 70 | 25 | 12 | |
| 16103 | QY-65 | 650 | 94 | ≤ACSR500 | 25 | 25 |
| 16104 | QY-125 | 1250 | 94 | ≤ACSR720 | 25 | 40 |
| 16105 | QY-200 | 2000 | 94 | ≤ACSR1440 | 25 | 85 |
To support the Transmission work, XINYA Power has tubular gin pole,hydraulic cable puller,wire rope pulley block,hoisting tackle,wire rope gripper,cable reeel spool and stand- all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.
