Product Details:
|
| Rated Load(KN): | 30 | Material: | Stainless Steel, Steel |
|---|---|---|---|
| Number Of WHEEL: | 1 | Weight（kg）: | 3 |
| Type: | Hoisting Block | ||
| Highlight: | construction hand tools,building construction tools |
||

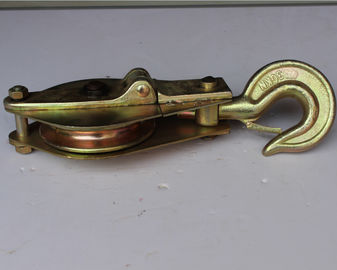

3T Single Wheel Wire Rope Pulley Block,Hoisting Pulley Block
Application
Pulley block is an important lifting tool with simple strusture and use conveniently.It can change direction of pulley, steel rope and high weight cargoes, especially series of pulley combined with windlass, mast and other lifting machinery.It widely used in installation in construction.
Characteristics
1. Material:Steel
2. Single wheel opening hook type.Two or three sheaves are closed.
3. It is light weight
Technical Data
| Model Type | Rated Load(KN) | Sheave | Applicable Steel cable |
| LZH5-1K | 5 | 1 | 5.7 |
| LZH10-1K | 10 | 1 | 7.7 |
| LZH10-2 | 10 | 2 | 5.7 |
| LZH10-3 | 10 | 3 | 5.7 |
| LZH15-2 | 15 | 2 | 7.7 |
| LZH15-3 | 15 | 3 | 12.5 |
| LZH20-1K | 20 | 1 | 11 |
| LZH20-2 | 20 | 2 | 7.7 |
| LZH20-3 | 20 | 3 | 7.7 |
| LZH30-1K | 30 | 1 | 12.5 |
| LZH30-2 | 30 | 2 | 11 |
| LZH30-3 | 30 | 3 | 7.7 |
| LZH50-1K | 50 | 1 | 15.5 |
| LZH50-2 | 50 | 2 | 12.5 |
| LZH50-3 | 50 | 3 | 11 |
| LZH80-1K | 80 | 1 | 18.5 |
| LZH80-2 | 80 | 2 | 15.5 |
| LZH80-3 | 80 | 3 | 15.5 |
3T Single Wheel Wire Rope Pulley Block,Hoisting Pulley Block is for lifting.
It can be used in single, also can be used as a block.
