Product Details:
|
| Rated Load(KN): | 20 | Material: | Nylon/Aluminium |
|---|---|---|---|
| Weight(kg): | 20 | Number Of WHEEL: | 1 |
| Product Name: | Large Diameter φ660x100mm Stringing Pulley Blocks | Type: | Round Belt, Stringing Block |
| Highlight: | construction hand tools,building construction tools |
||

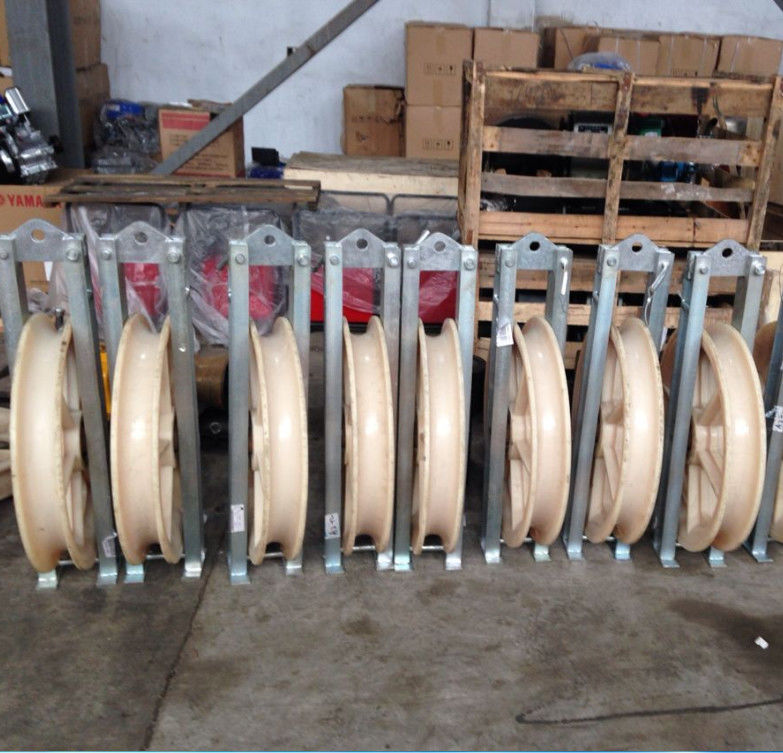

Fiber Optic Cable illLarge diameter φ660x100mm Stringing Pulley Blocks
Application:
It is suitable to stringing stranded OPGW.Compression sleeves,swivel connectors,and pulling rope connectors can pass through the groove.The sheave is made in aluminum alloy or high strength nylon.The big size 508mm,660mm,822mm,916mm,1040mm nylon sheave can be lined with neoprene.
Single Wheel-Wheel material aluminum or Nylon, and it could be covered by rubber.
| Model | Wheel size Diameter x Width (mm) | Conductor size (mm2) | Rated load (kN) | Weight (kg) | Wheel material |
| SHD-120X30 | 120x30 | 25~70 | 5 | 2.1 | Aluminum |
| SHD-160X40 | 160X40 | 95~120 | 10 | 3.1 | |
| SHD-200X40 | 200X40 | 150~240 | 15 | 3.7 | |
| SHD-200X60 | 200X60 | 150~240 | 15 | 4.1 | |
| SHD-250X40 | 250X40 | 150~240 | 20 | 5.1 | |
| SHD-250X60 | 250X60 | 300~400 | 20 | 5.4 | |
| SHD-270X60 | 270X60 | 300~400 | 20 | 6.7 | |
| SHD-320X60 | 320X60 | 300~400 | 20 | 10.4 | |
| SHD-400X80 | 400X80 | 400~500 | 20 | 11.9 | |
| SHDN-120X30 | 120x30 | 25~70 | 5 | 1.5 | Nylon |
| SHDN-160X40 | 160X40 | 95~120 | 10 | 2.3 | |
| SHDN-200X40 | 200X40 | 150~240 | 15 | 2.5 | |
| SHDN-200X60 | 200X60 | 150~240 | 15 | 3.0 | |
| SHDN-250X40 | 250X40 | 150~240 | 20 | 3.6 | |
| SHDN-250X60 | 250X60 | 300~400 | 20 | 3.8 | |
| SHDN-270X60 | 270X60 | 300~400 | 20 | 4.3 | |
| SHDN-320X60 | 320X60 | 300~400 | 20 | 7.5 | |
| SHDN-400X80 | 400X80 | 400~500 | 20 | 8 | |
| SHD-508X75 | 508X75 | ≤400 | 20 | 22.3 | Aluminum |
| SHD-660X100 | 660X100 | ≤500 | 20 | 30 | |
| SHDN-508X75 | 508X75 | ≤400 | 20 | 18 | Nylon |
| SHDN-660X100 | 660X100 | ≤500 | 20 | 20 | |
| SHDN-830X110 | 830X110 | ≤630 | 30 | 25 | |
| SHDN-916X110 | 916X110 | ≤800 | 50 | 45 | |
| SHDN-1040X125 | 1040X125 | ≤1000 | 55 | 105 |
Note:
1. Hook fitting,round eye fitting and clevis fitting are optional,please specify when ordering.Customized blocks could be supplied on request.The data in the model mean the outer diameter of sheave x widthof sheave(mm).
2. All the sheaves are mounted on ball bearings.Thel frame of blocks is made in galvanized steel.
