Product Details:
|
| Rated Load(KN): | 5-20 | Material: | Nylon/Aluminium |
|---|---|---|---|
| Weight(kg): | 1.4-2.1 | Width Of Sheave: | 50-120 |
| Highlight: | construction hand tools,building construction tools |
||

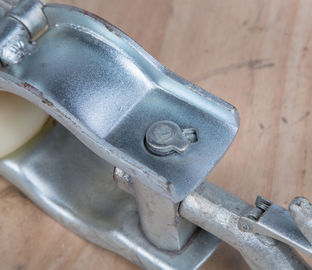

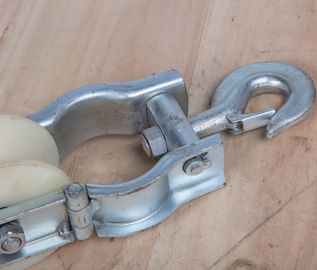

Seat hanging dual-purpose pulley stringing block SHC details With Nylon/Aluminium Alloy Wheels
Usage
For the display of a small area of the guide wire, can be used for hook, can also be used as heavenly, according to the material is divided into aluminum and MC nylon wheel.
Notes
1.The material of wheels is aluminum alloy
2.The product is classified as hook style and clevis type
3.More specification can be customized.
Technical Data
| Model | Outside diameter of sheave/width of sheave(mm) | Rated Load(KN) | Weight(kg) | Material |
| SHC-0.5A | Φ80/50 | 5 | 1.9 | Aluminum sheave |
| SHC-20B | Φ120/58 | 20 | 2.1 | Aluminum sheave |
| SHCN-0.5A | Φ80/50 | 5 | 1.4 | Nylon sheave |
| SHCN-20B | Φ120/58 | 20 | 1.6 | Nylon sheave |
